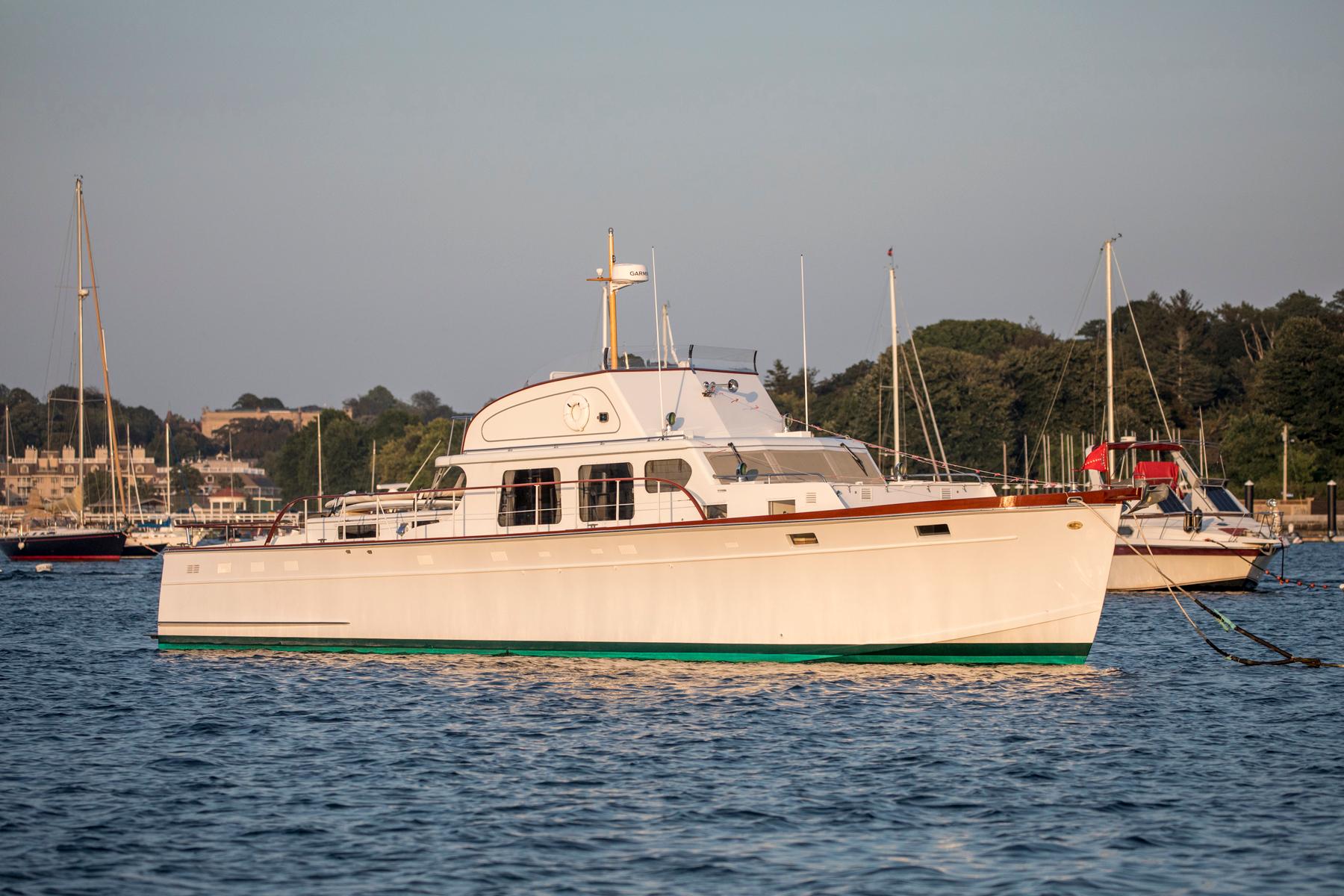

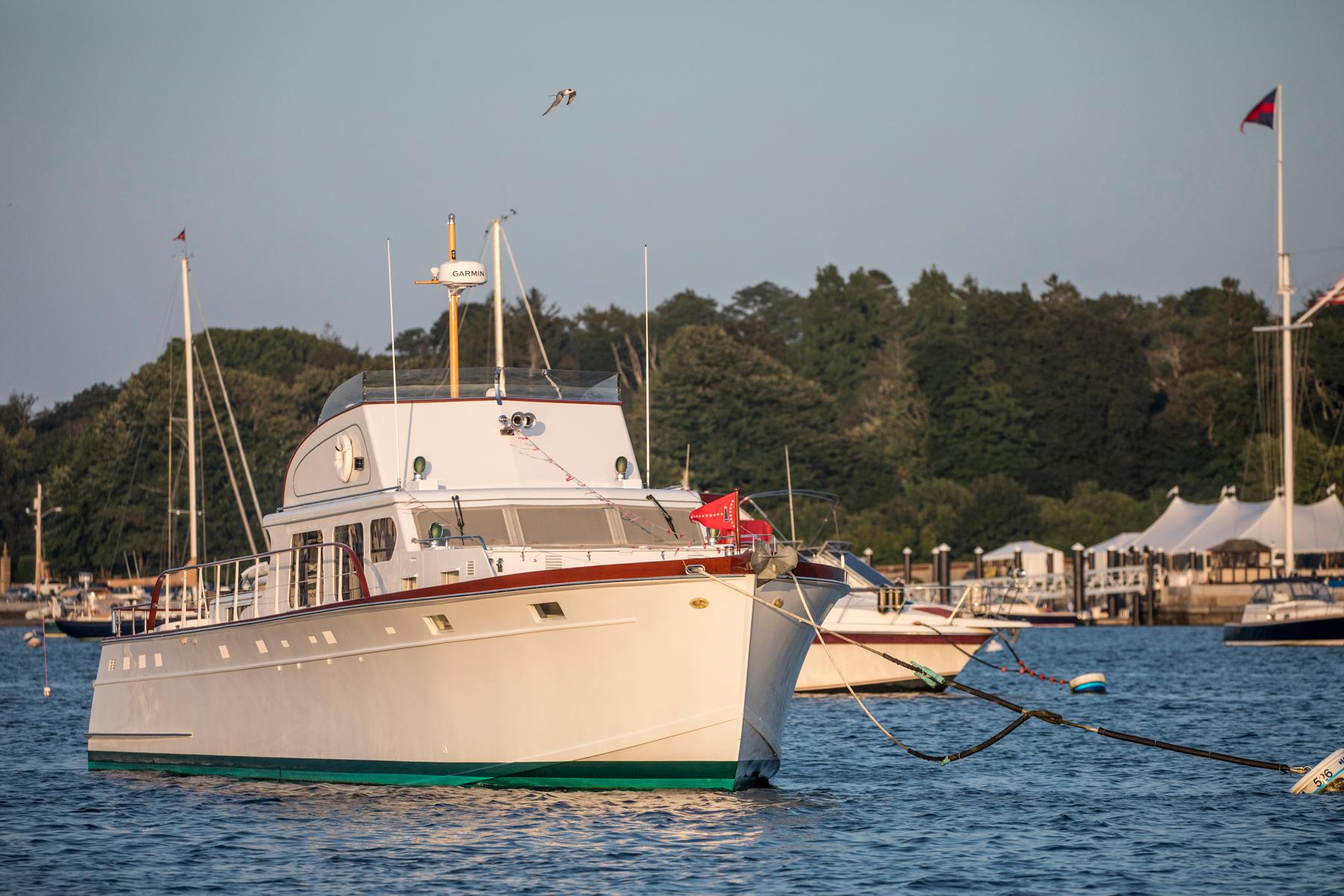

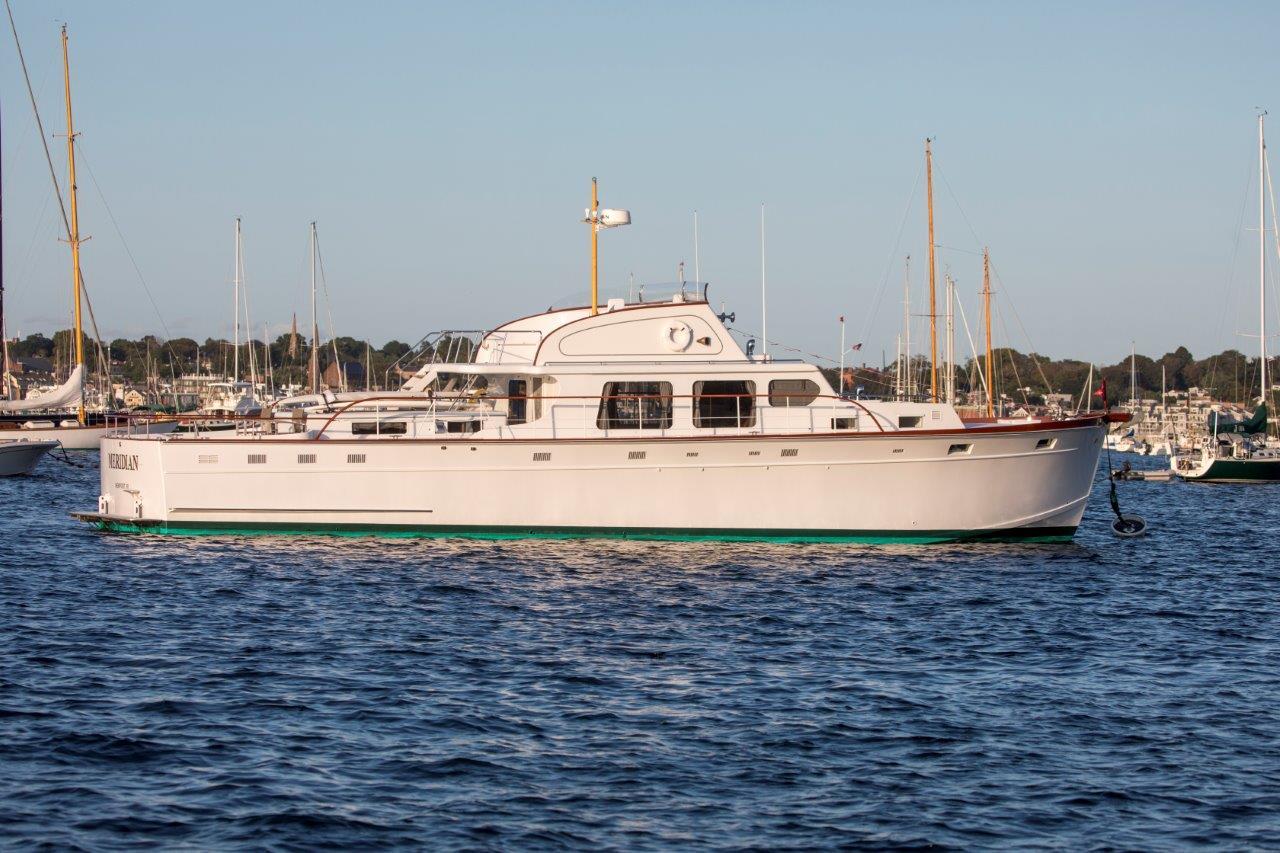

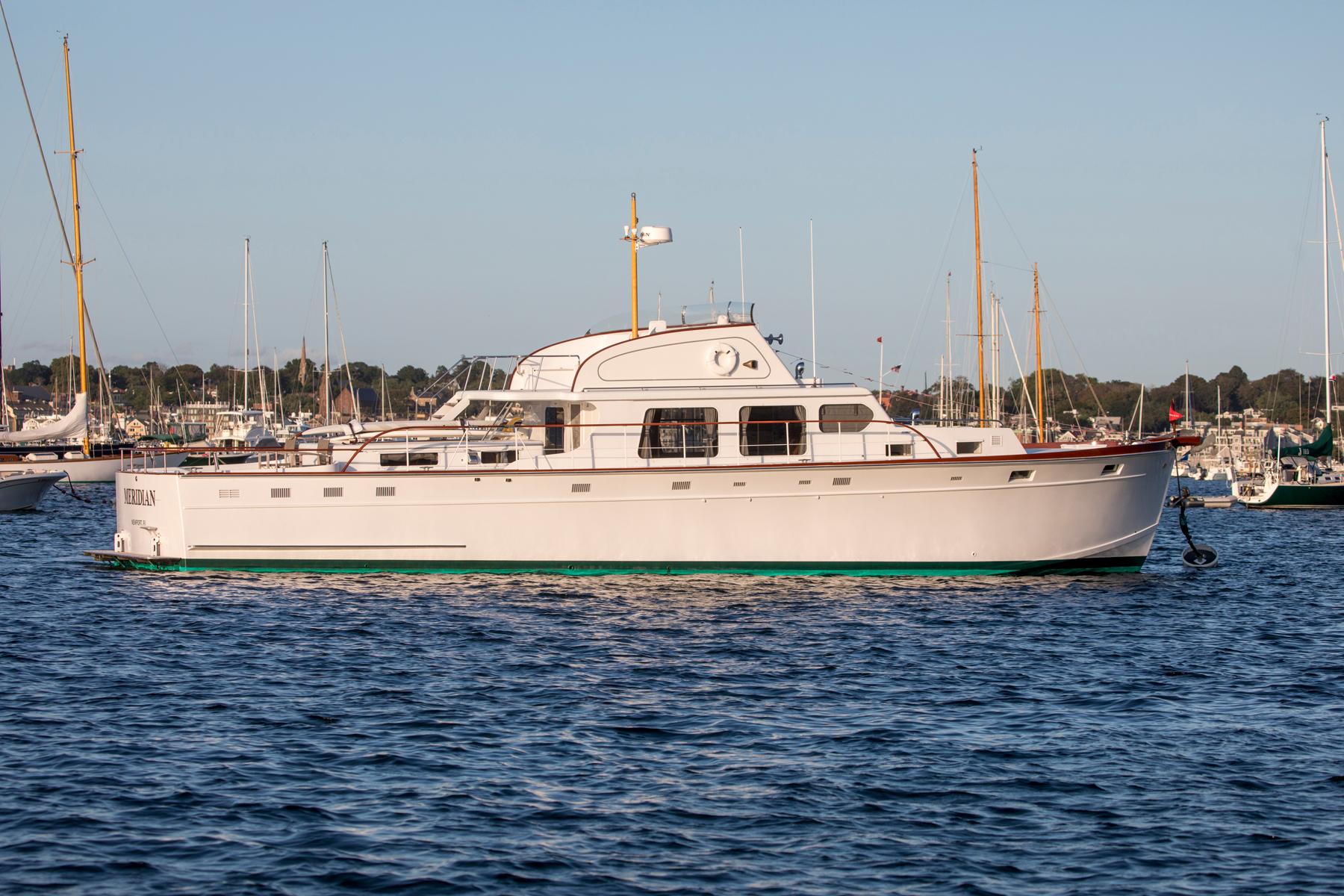

1964 Huckins Out Islander 56 | MERIDIAN

• LOA 56’ 10”
• Cold Molded Construction, double diagonal mahogany planking over oak frames glassed over as original from the factory
• All exterior fittings are original cast aluminum restored, including cleats, hatches stanchions and flybridge supports
• Superstructure and deck are marine grade plywood faired and painted reinforced with fiberglass
• Hull and superstructure color is Awl Grip “Off White Revisited”
• Boot Top Awl Grip “Jade Green”
• Bottom paint Seahawk Bio-cop TF Green
• Watertight collision bulkhead located in the bow
• Handrails and toe rails are varnished Mahogany
• Varnished Mahogany interior with cork flooring

• Twin Cummins 6CTA M2 @ 430hp each
• Twin Disc Transmissions MG5061
• Huckins M12 12deg down angle vee-drives with remote coolers
• Aquamet 22 SS shafts with 3 blade Michigan Dyna Jet 25R26 bronze props
• Hydro-Slave steering system with PTO pump from starboard transmission
• Spare Michigan Dyna Jet 25R26 props custom mounted in the B Hold
• Flow-Scan fuel consumption monitoring system with remote panels at flybridge
• Air conditioning Units x3 Climma two 12,000 BTU and one 18,000 BTU self-contained reverse cycle units
• Bilge Pumps x5 automatic with HW alarms and manual controls
• Monel Fuel Tank and water tanks with Huckins Dwyer Gauges
• Internal bronze seawater strainers for main engines generator and air-conditioning
• Bronze Groco seacocks
• Fuel shutoff valves
• Two separate polyethylene Sealand vacuflush holding tanks with corresponding overboard discharge bumps and dockside deck pump out

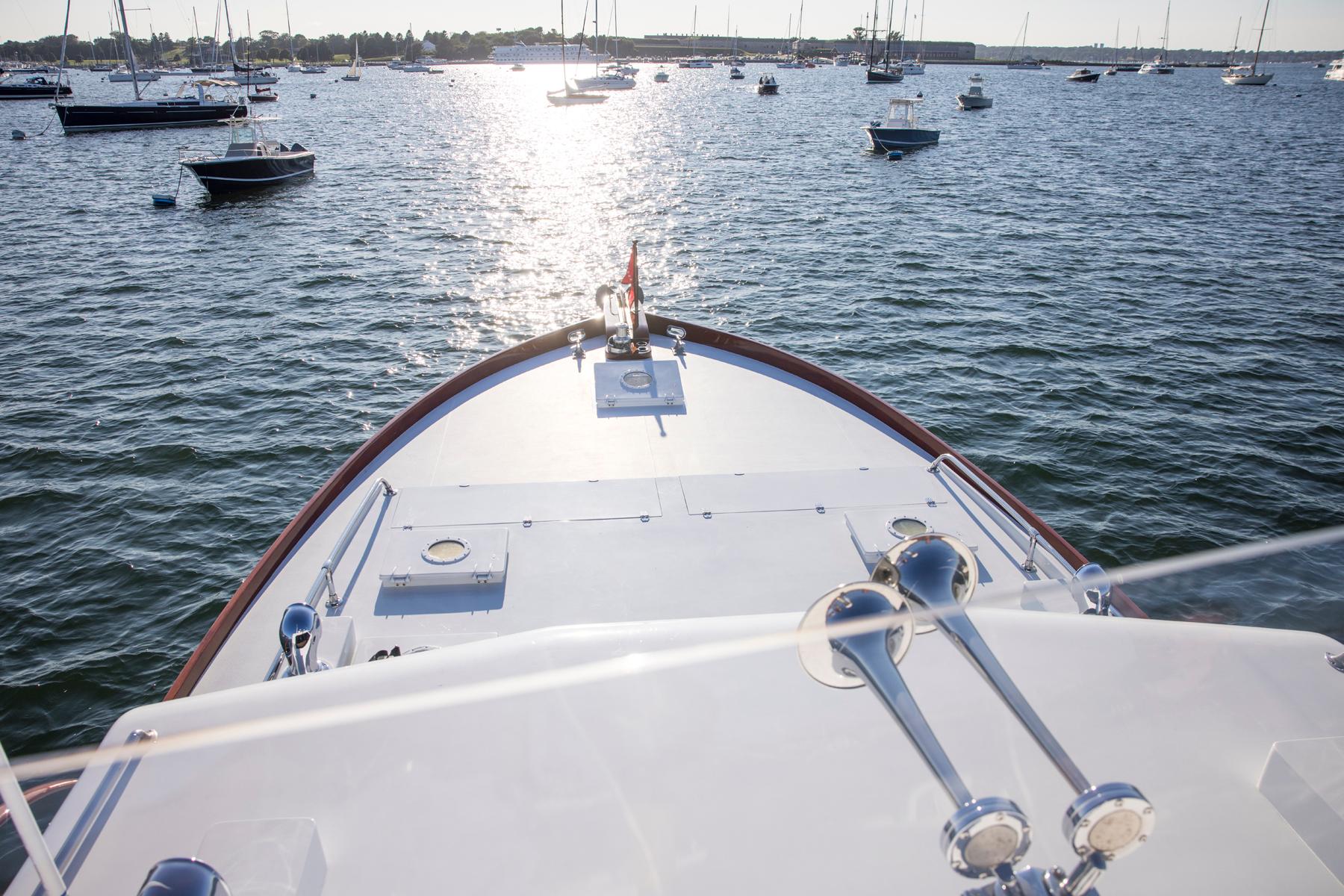

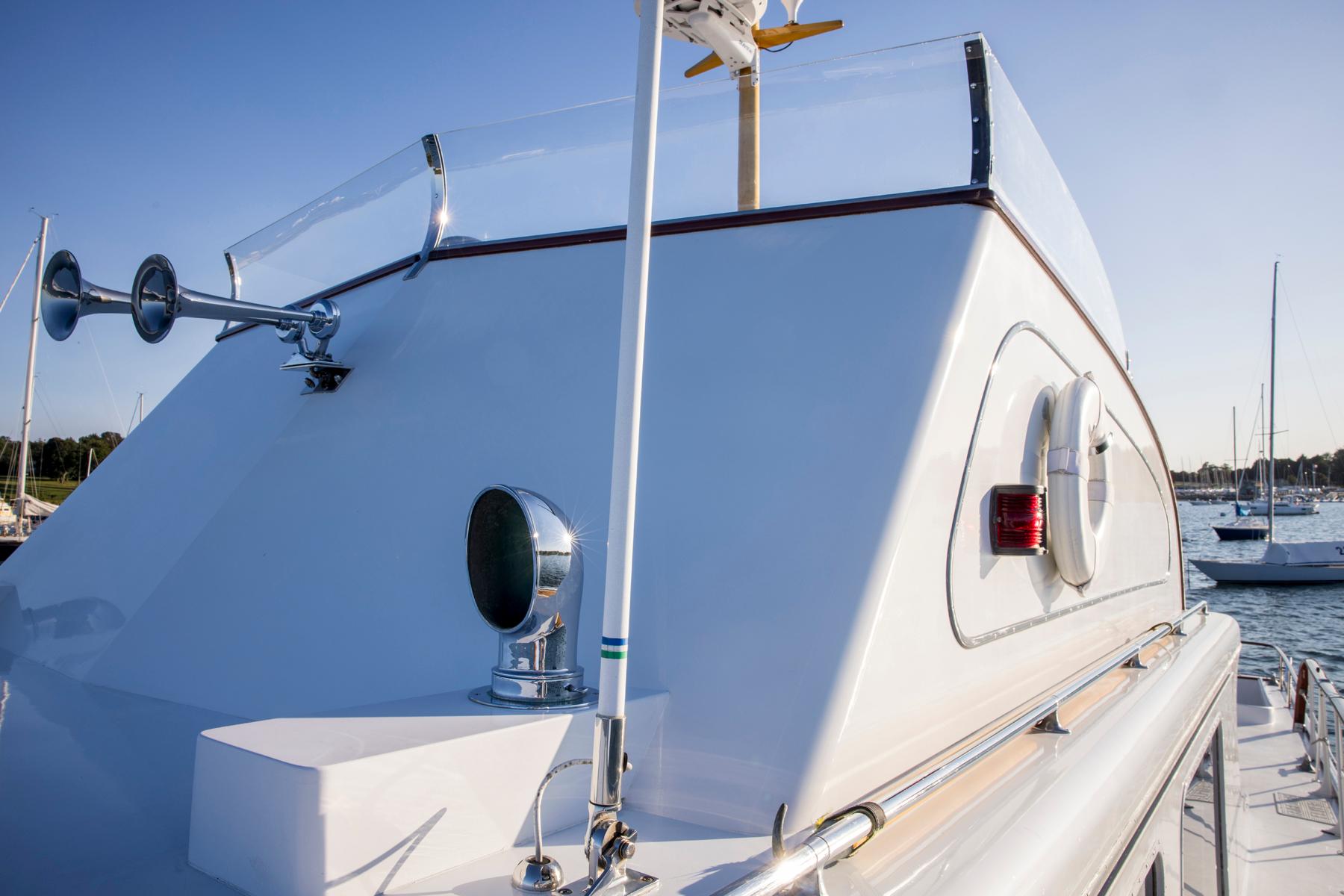

• Kahlenberg dual trumpet 12vdc horn system with automatic sound signal control
• Headhunter 12vdc water pressure system
• Sealand Vacuflush head system, with two independent polyethylene black water tanks
• Gray water system includes two separate Whale tanks fore and aft, with pumps that direct into a central main gray water tank. Galley sink, head sinks and showers feed into the independent gray water system
• Duplex 1000 Racor fuel filtration system
• Two separate Fire-Boy fire suppression systems; one for B-Hold and one for Engine Room
• SuperStor 20-gal Marine hot water heater 220vac, also connected to the starboard engine

• Multiple AC outlets
• Custom 220v AC and 12v DC distribution panel with digital amp and volt meters
• House Batteries x4 AGM Prevailer 8D
• Engine Start Batteries x2 AGM Prevailer 8D
• Generator Start Battery x1 AGM 12v
• Battery parallel system for House / Engines
• Galvanic isolation system
• Shore power inlet x1 50amp 110/220
• Port engine dual belt house Balmar alternator 12v 120amp with programmable remote external regulator
• Generator x1 Kohler 13kw 13EOZD 60htz installed with sound shield and remote start. Remote start panel is at the main distribution board
• Victron Multi-Plus 12v/3000wat/120v inverter charger with remote panel at the main distribution board

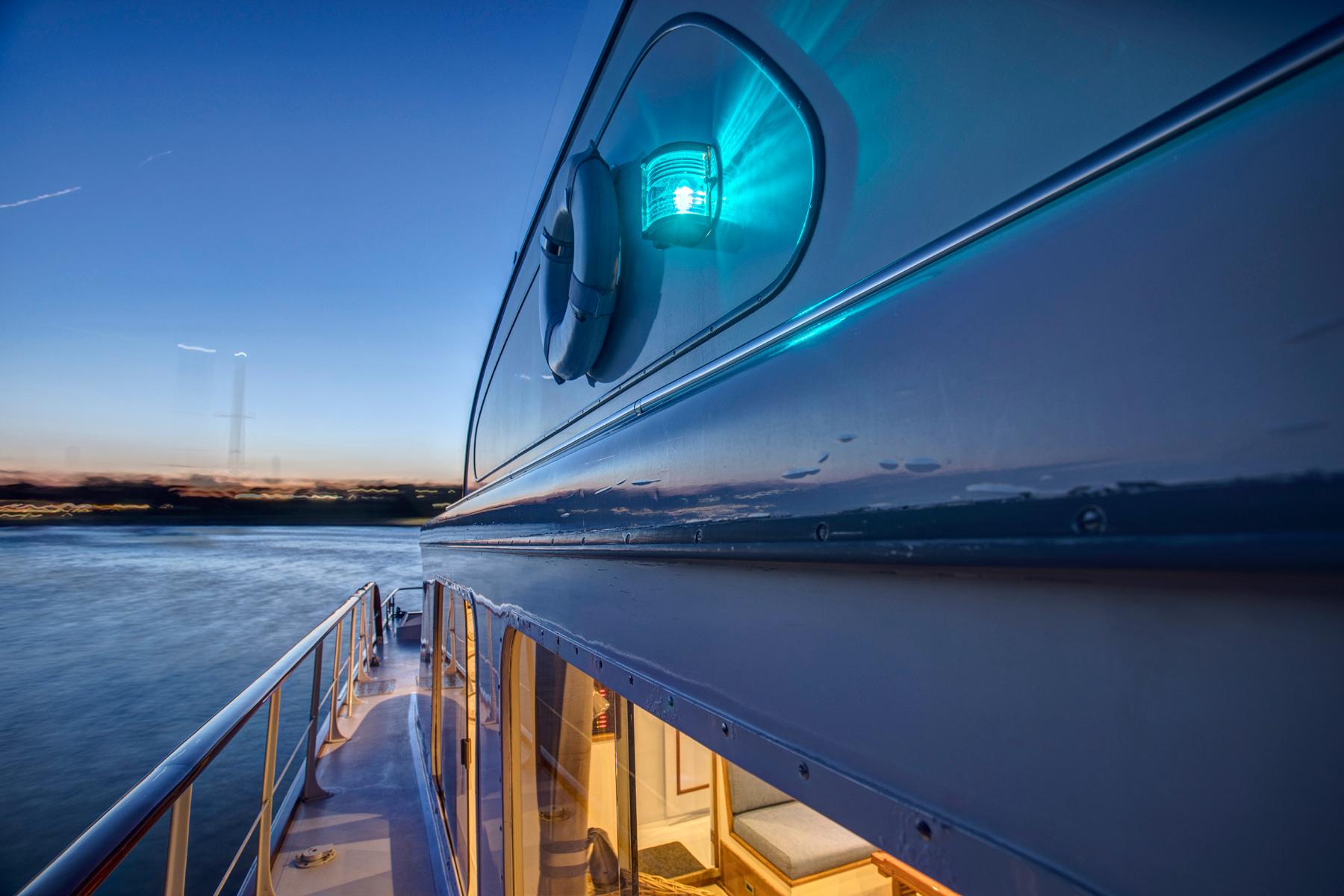

• LED navigation lights, covered by original teardrop lights
• LED interior lighting dimmable and controllable

• Door access to salon forward and owner’s stateroom aft from walkway
• Drop down screens built into both access doors
• DR Smith exterior LED lighting for cockpit, side decks and fore decks
• Galvanized Delta plow anchor with 50’ chain and 200’ rode
• Lewmar electric anchor windlass with remote at fly bridge helm
• Free standing 6’ VHF and AIS antennas port and starboard with fold down mounts

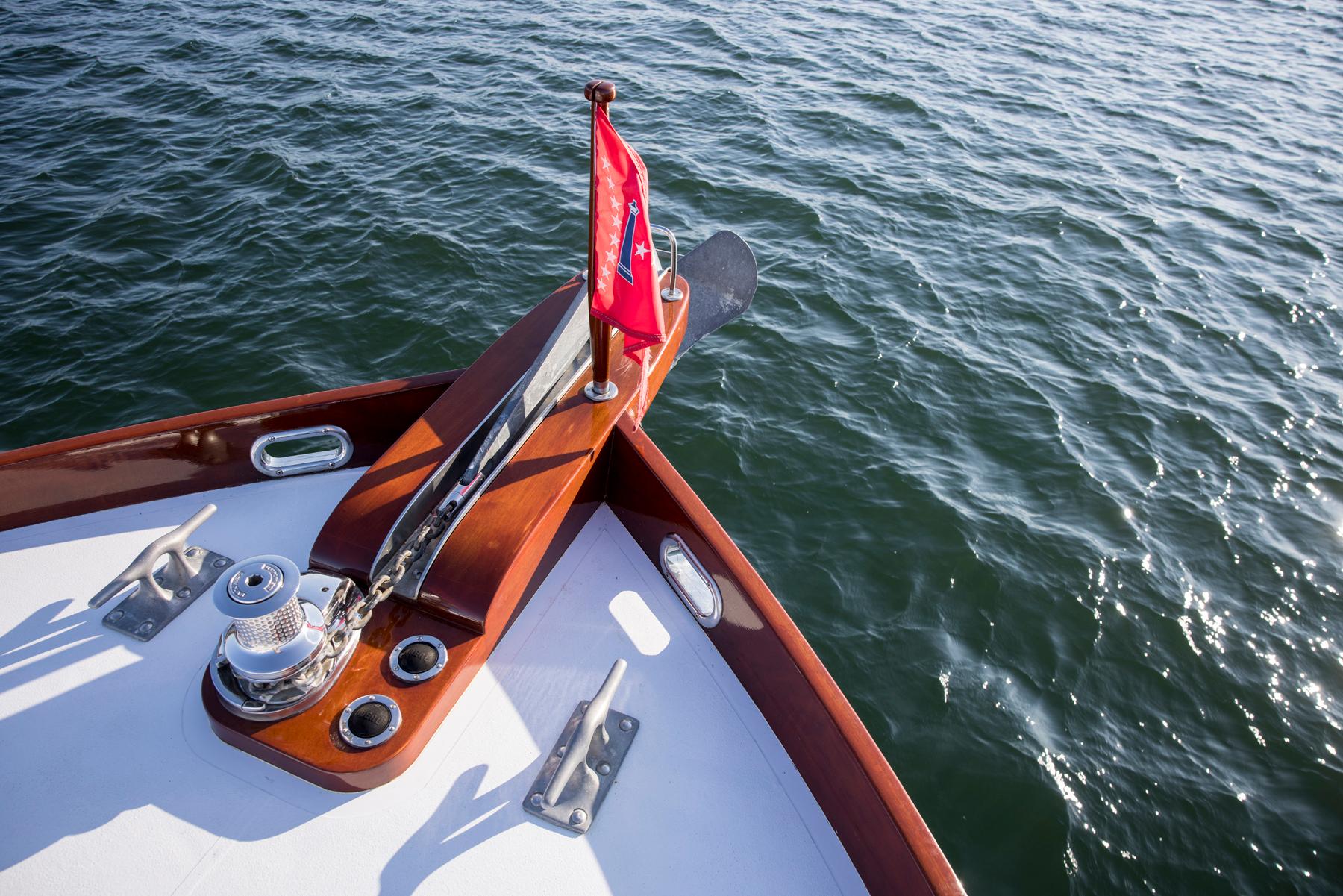

• Bow roller system inset into custom mahogany anchor deck with keeper
• Burgee flagpole and socket

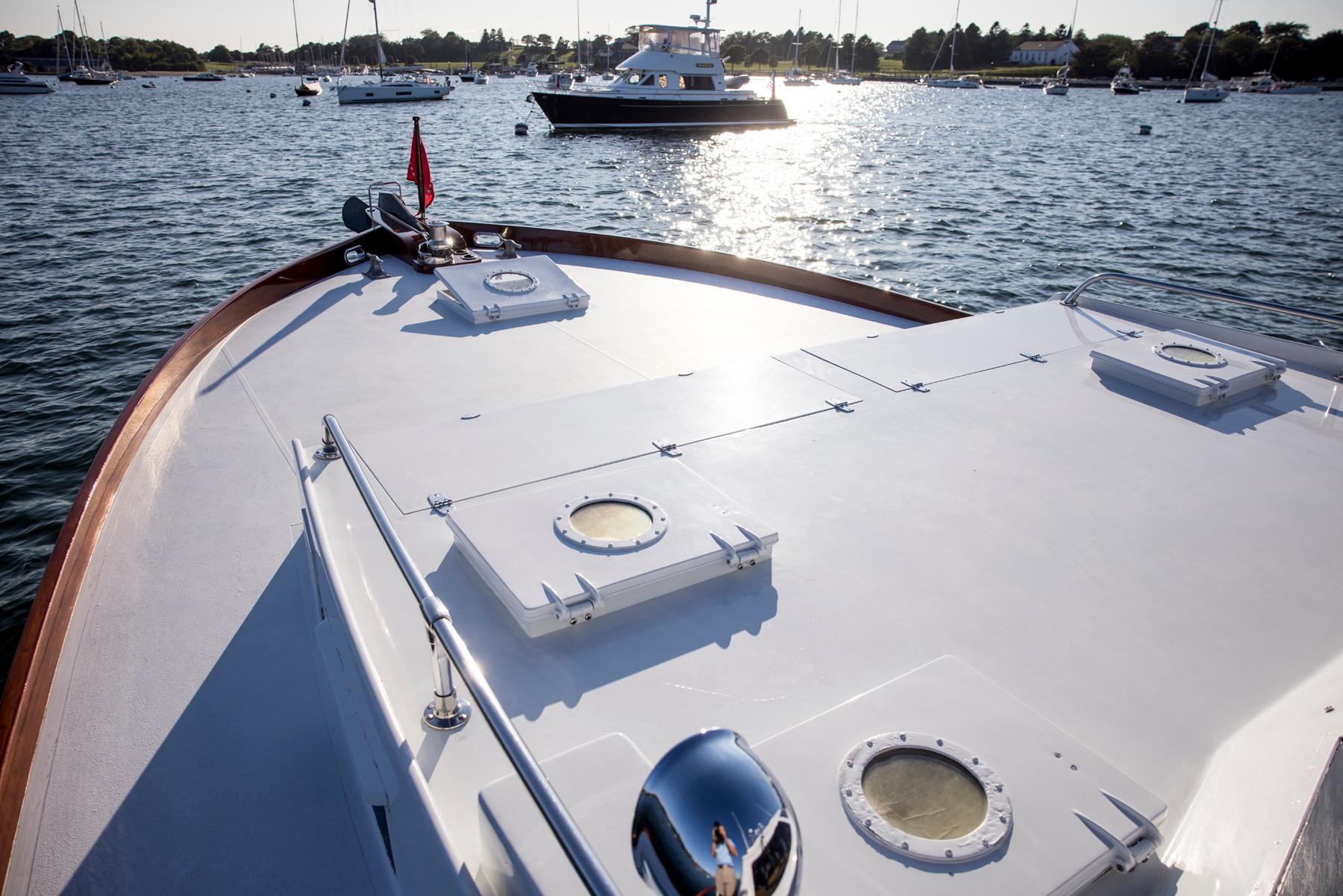

• Two forward deck lockers for propane gas storage and dock line storage
• Safety stainless handrails port and starboard forward
• Two tall lockers in walkway between Owner’s stateroom and salon, for cleaning supplies and additional storage
• One additional outboard storage locker in walkway port side for additional miscellaneous equipment
• One additional outboard locker in walkway that houses house battery switches.
• Large anchor locker in the bow
• Freshwater washdown at the bow and the stern
• Saltwater washdown at the bow
• Mooring cleats cast aluminum Huckins original x4 per side

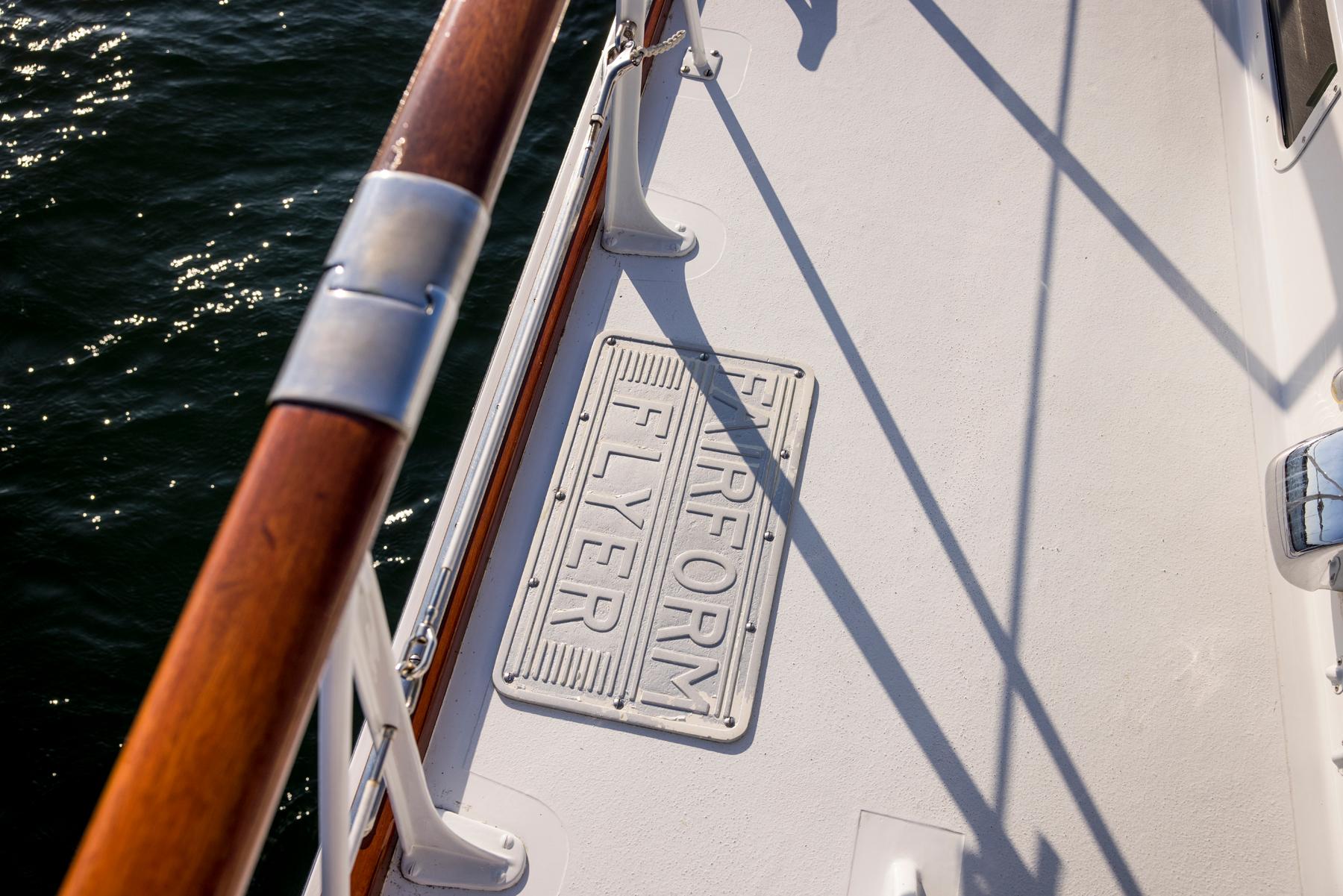

• Original Fairform Flyer cast deck plates at access gates port and starboard
• Original aluminum stanchions with radius steam bent varnished mahogany rails on side decks and aft decks

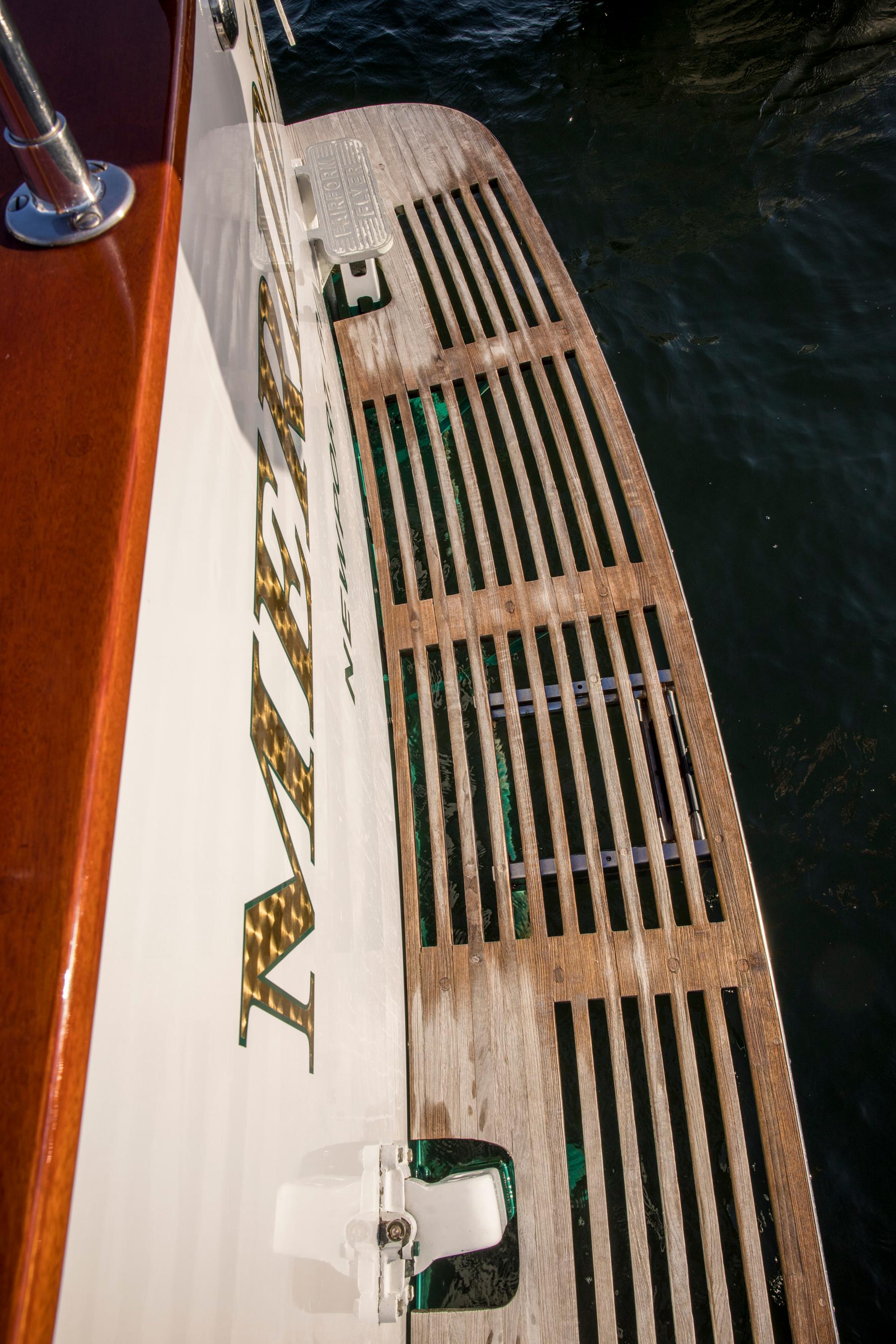

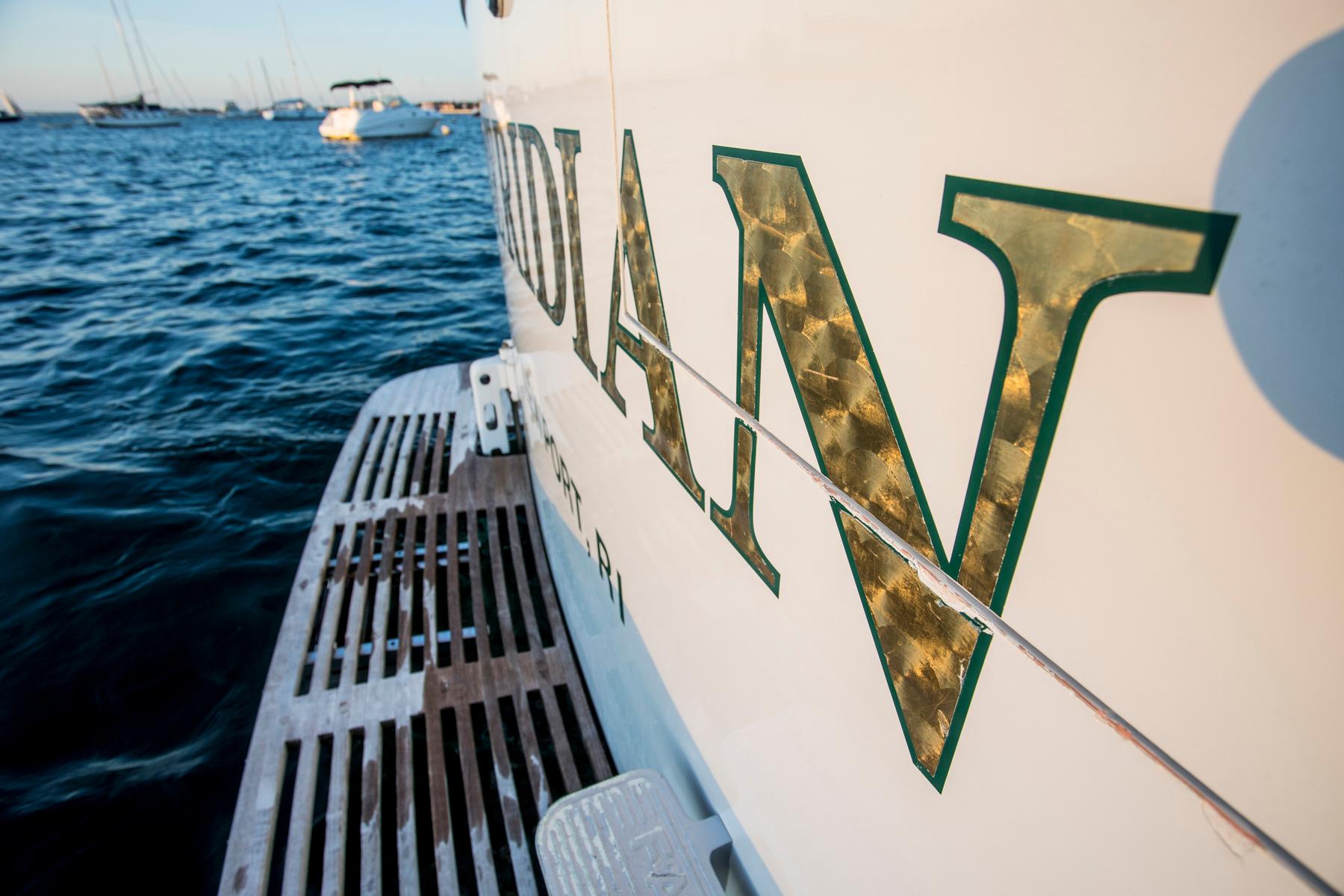

• Tuna door access to swim platform and under mount telescoping swim ladder
• Aft deck GFI AC Outlet
• x2 fishing rod holders

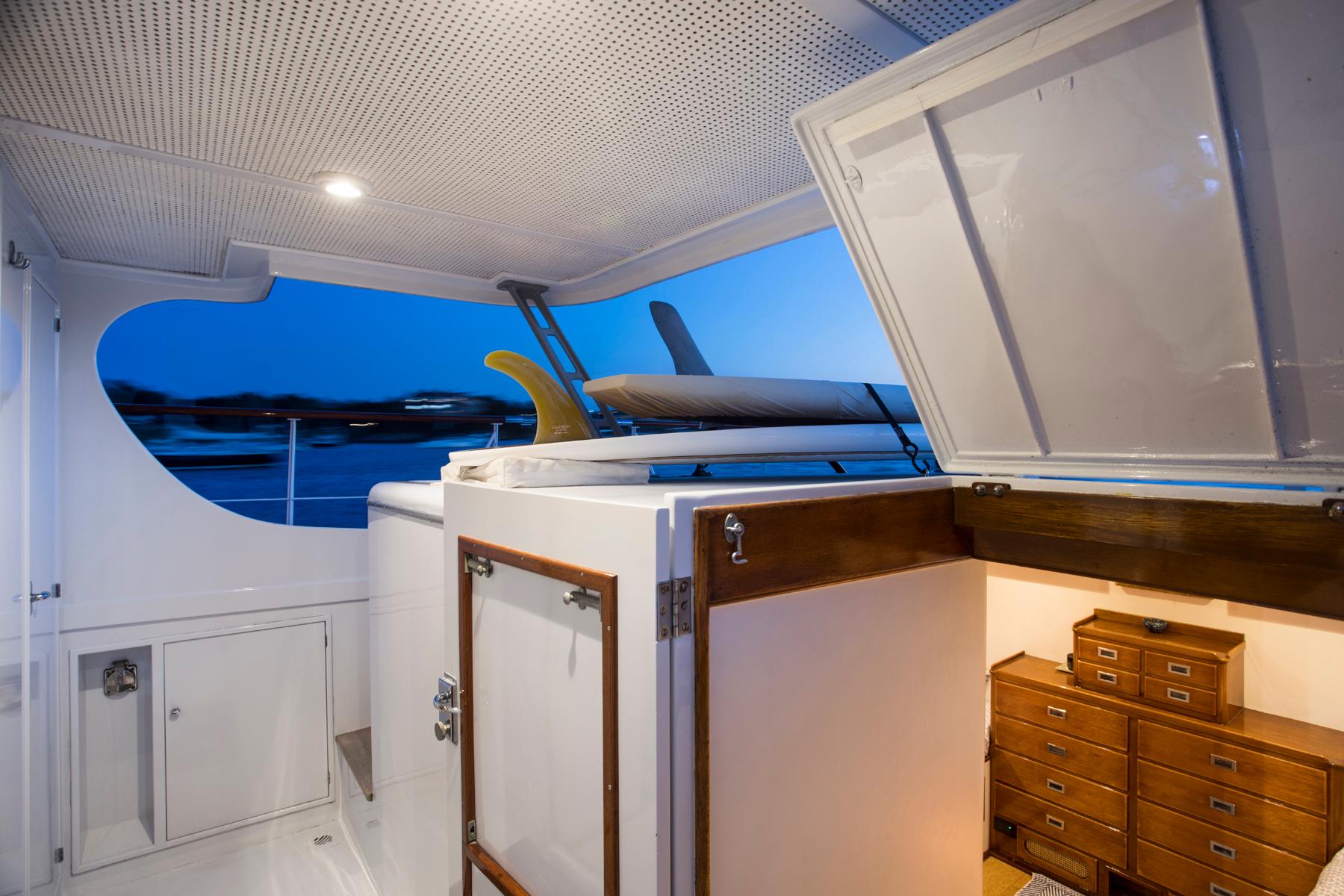

• Three access hatches on aft deck for normal and advanced engine room access

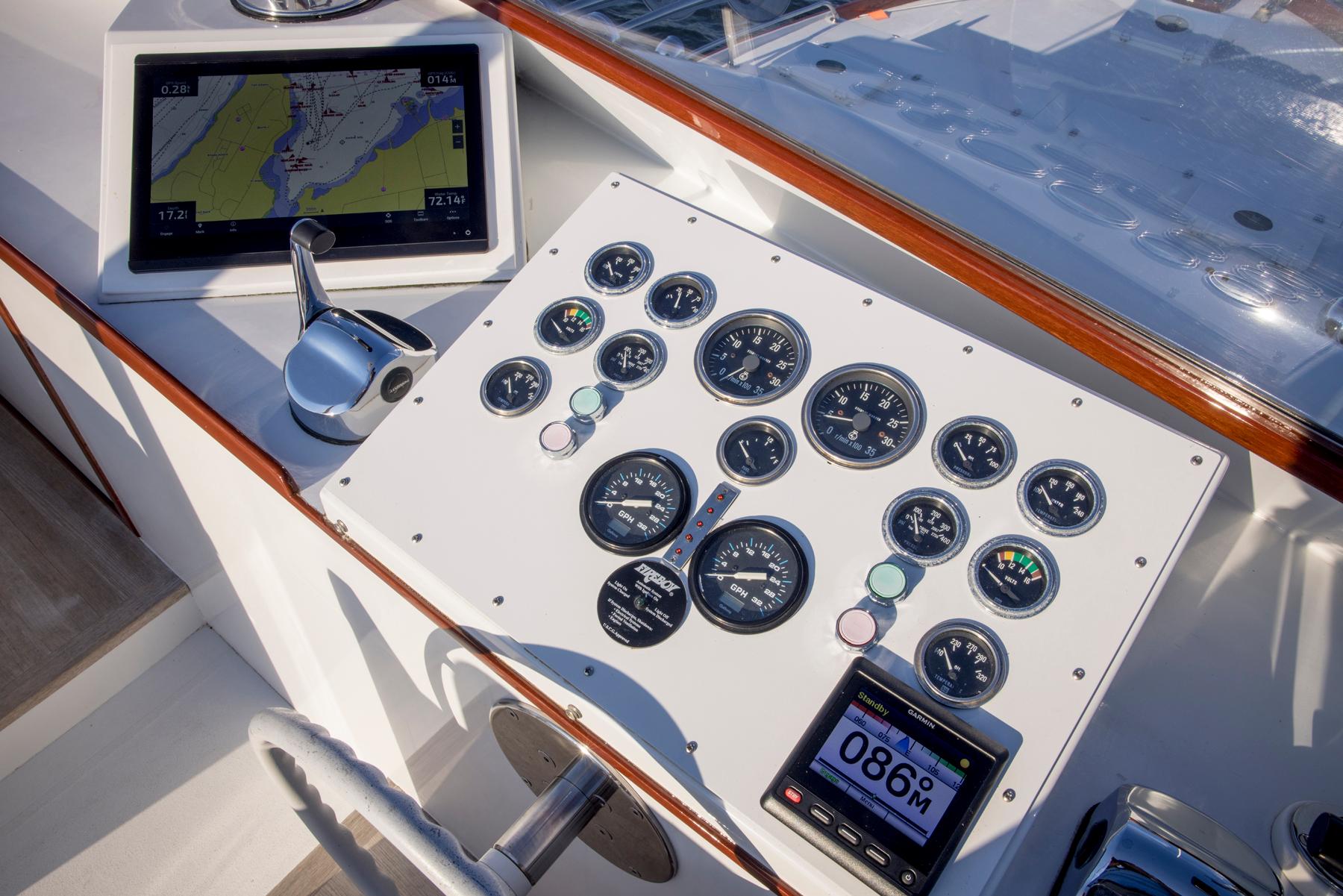

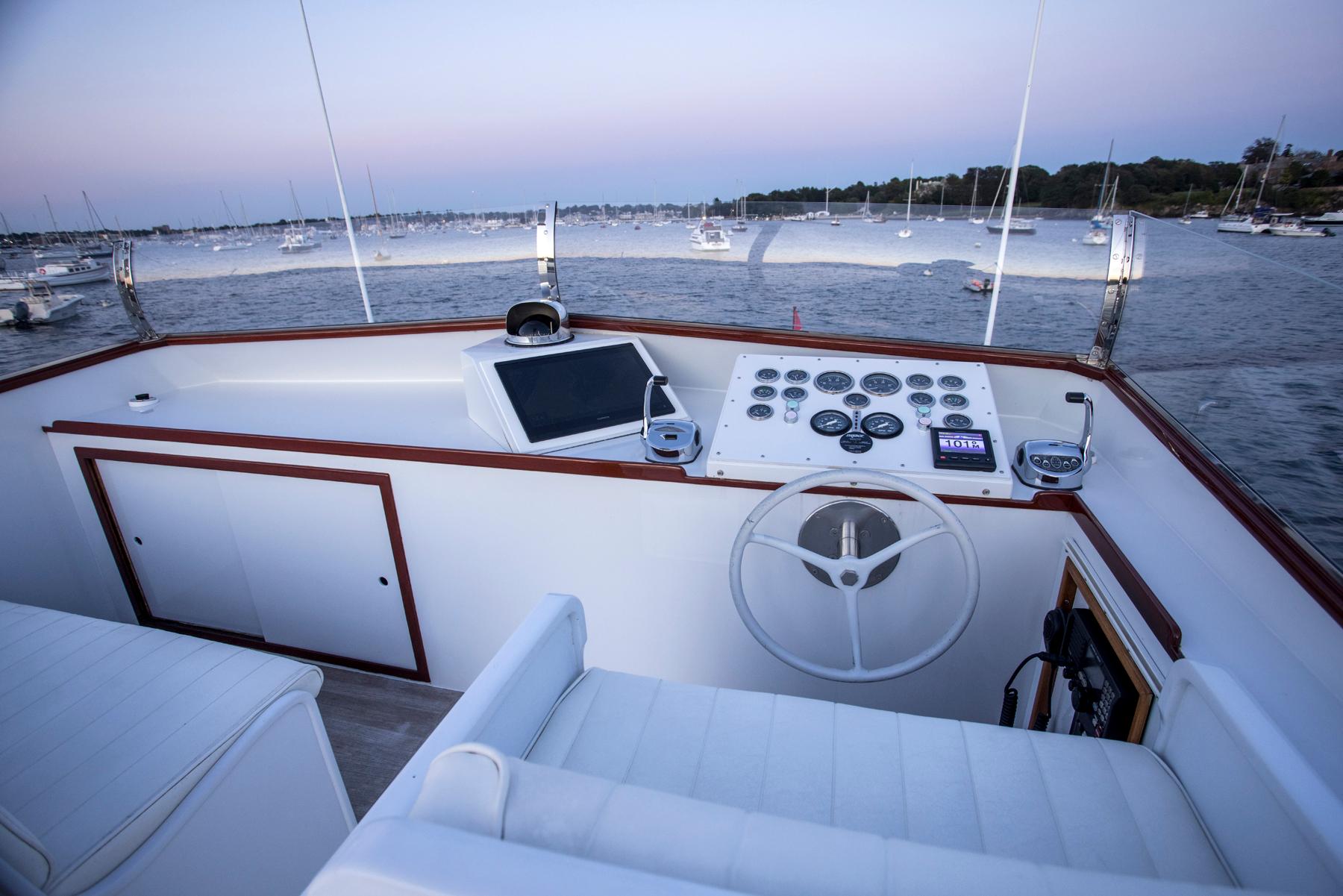

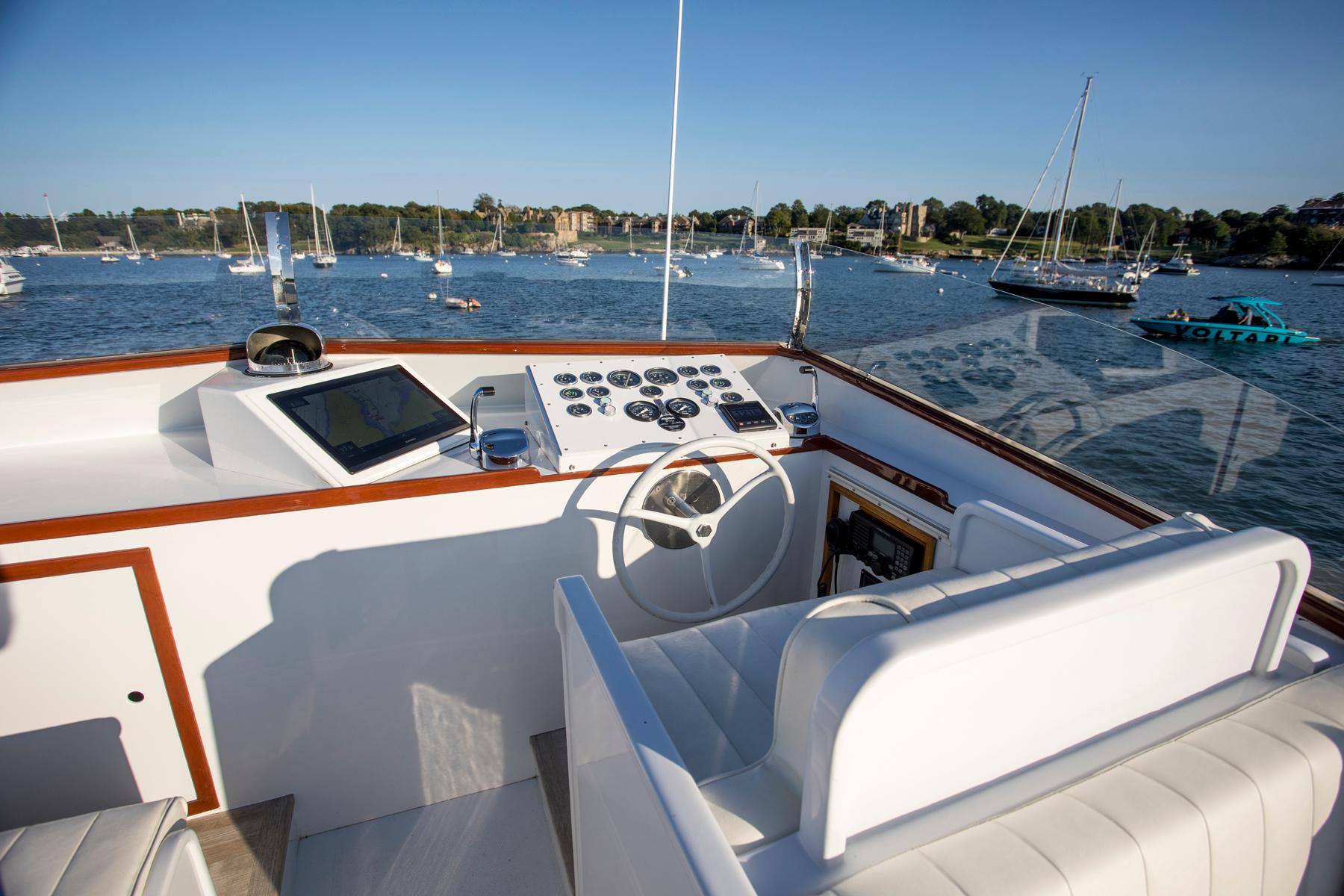

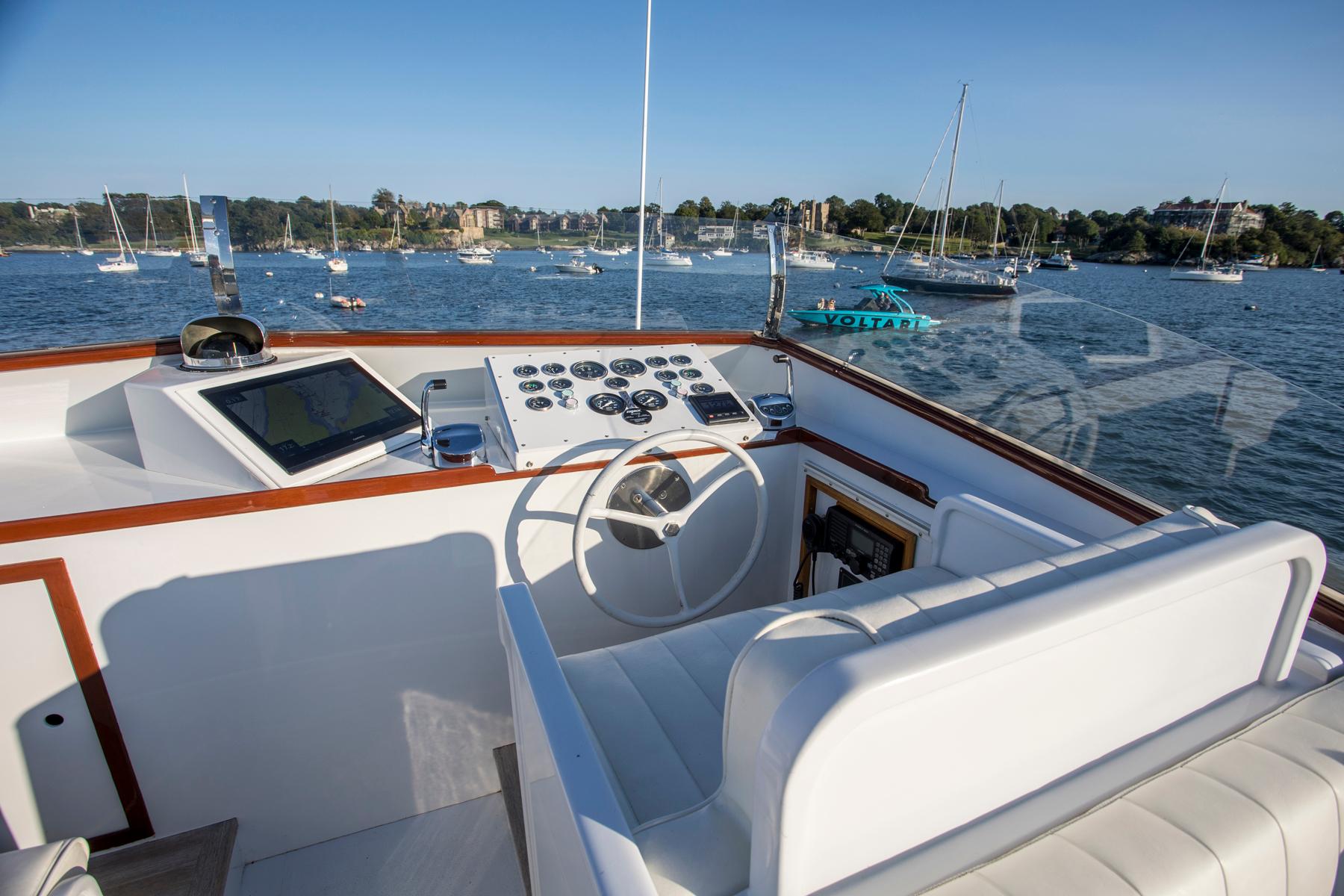

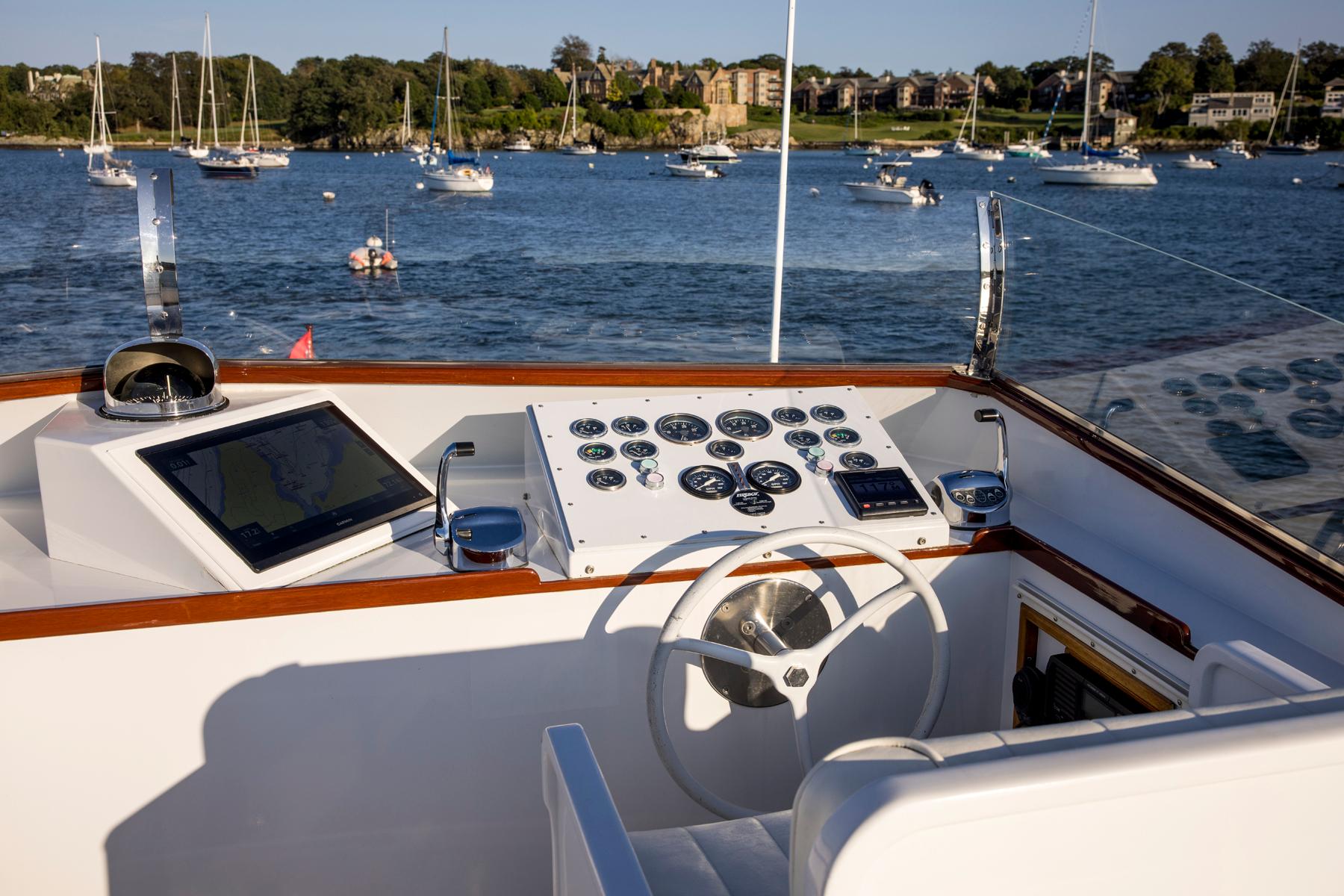

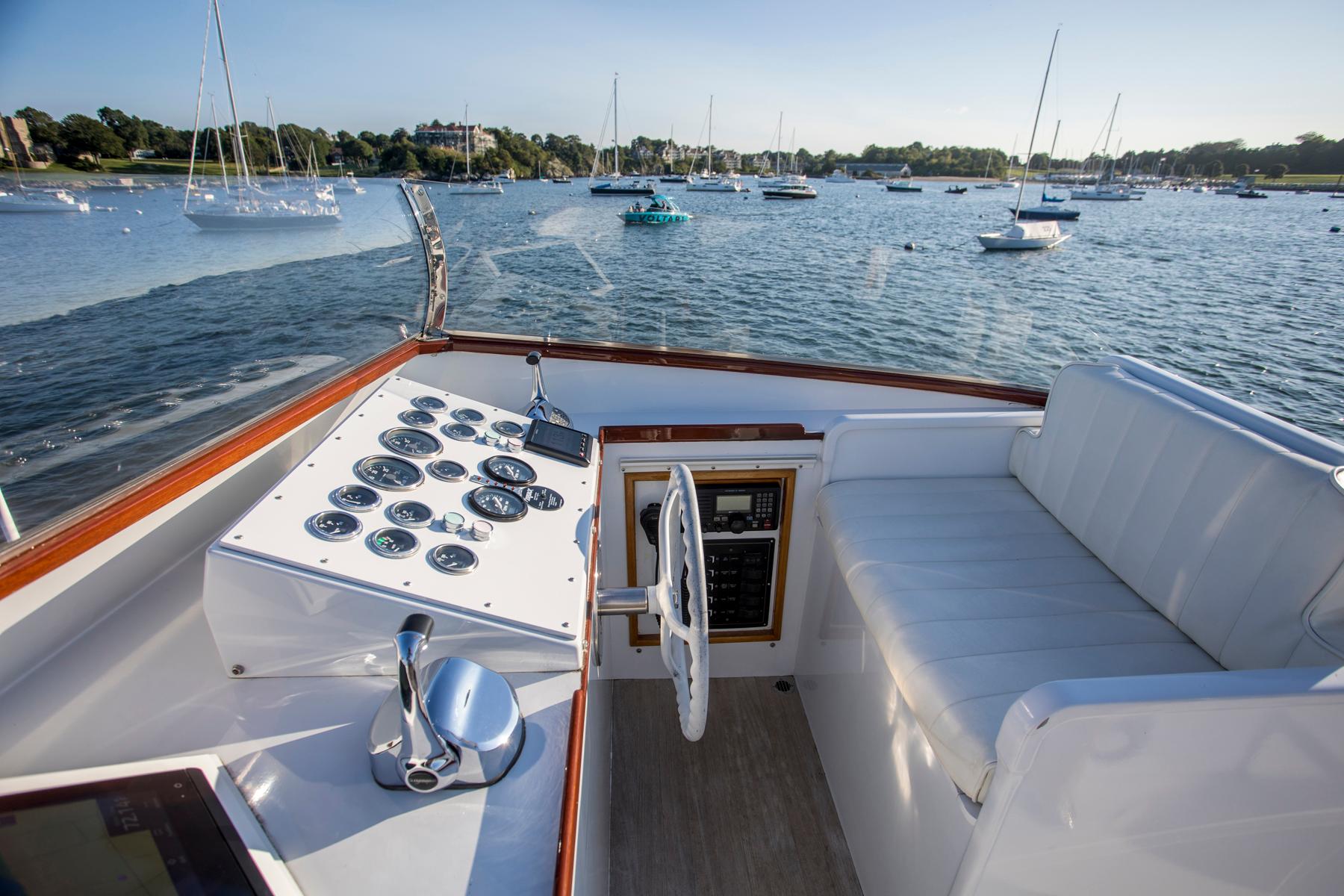

• Custom flybridge complete with helm station and electronics
• Custom sub panel 12v to starboard of helm, and ICOM VHF
• Red alarm light panel for x4 bilge HW alarms
• Cast, painted aluminum original Huckins steering wheel
• Two single lever Glendenning control modules

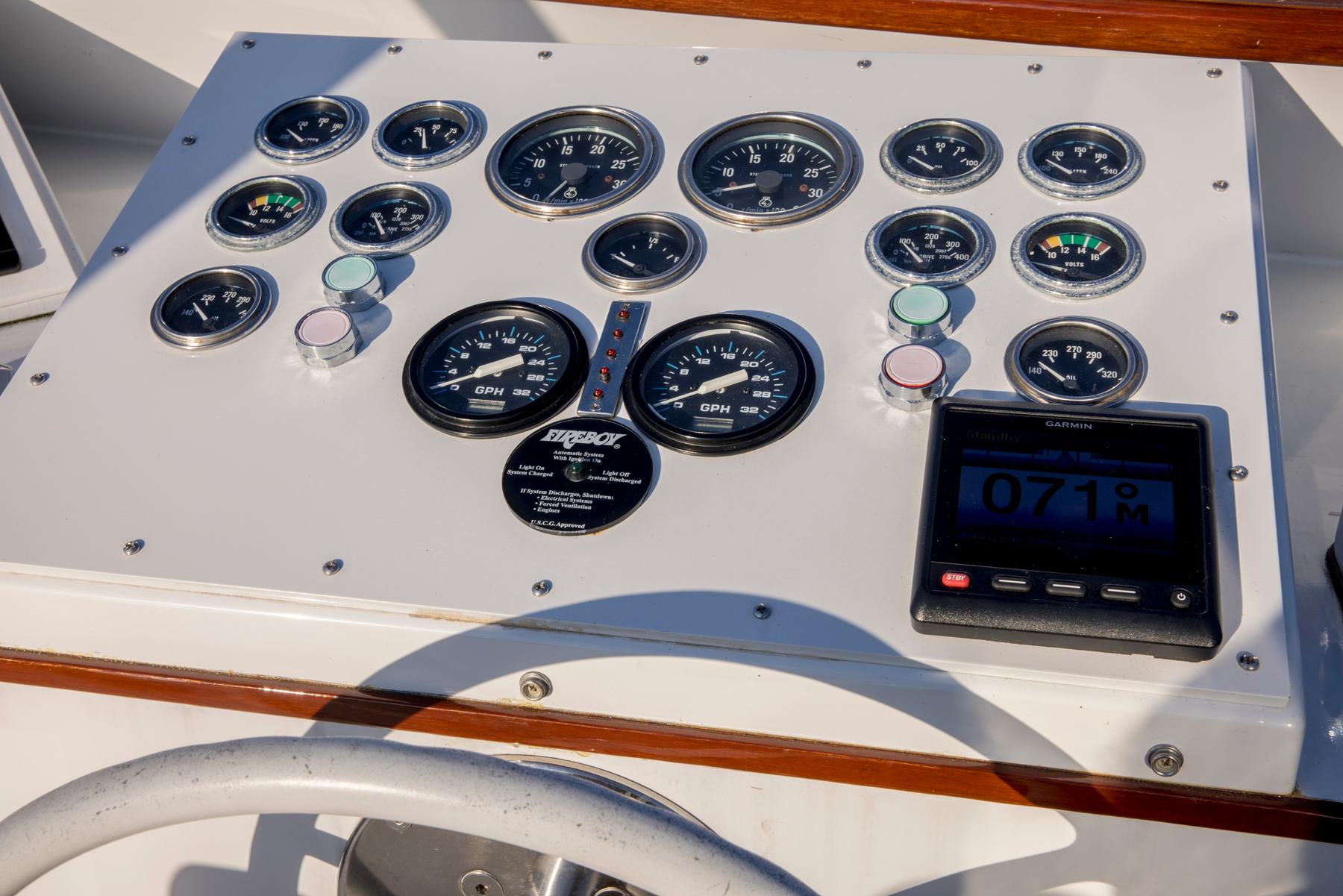

• Stewart Warner instrument gauges
• Clear plexiglass curved custom venturi windshield.
• Upper helm station with single helm seat to starboard
• Two-person observer guest bench seat to port

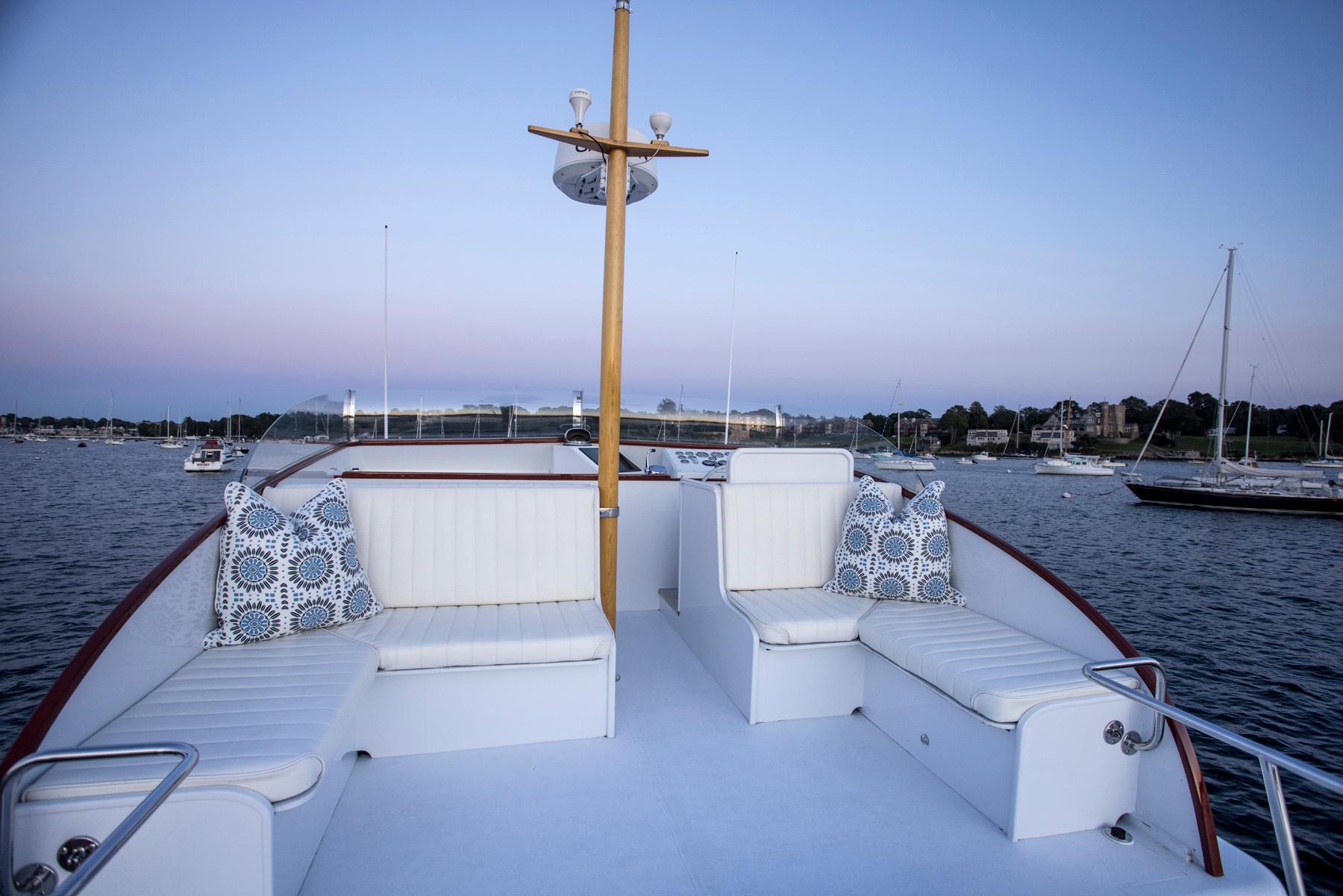

• Aft facing seats / benches to accommodate 3-4 people
• x10 seat cushions are stored under the console on the flybridge thru large slider hatches

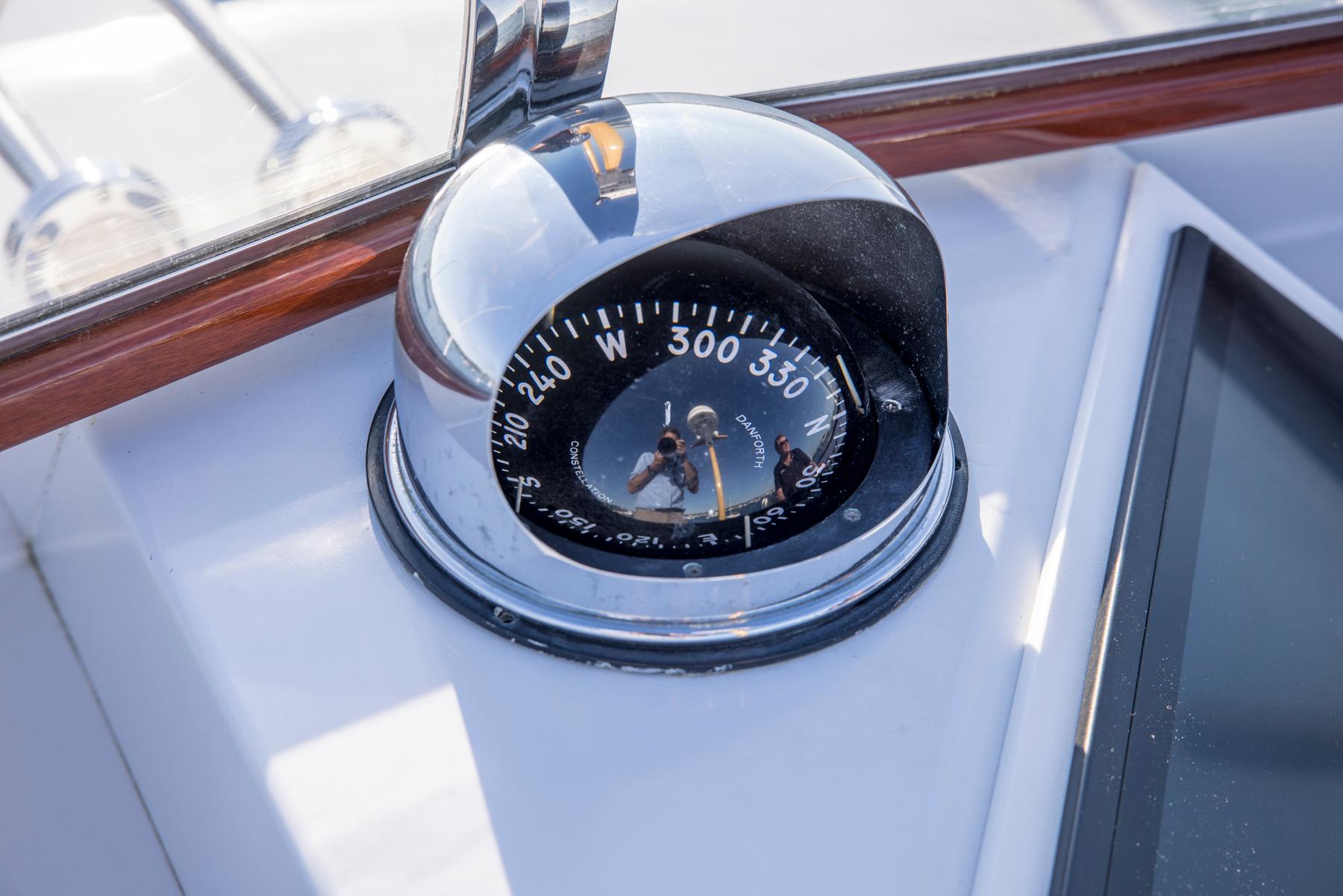

• 5” Danforth Constellation magnet compass on centerline with stainless hood
• x6 top lid seat lockers for additional miscellaneous storage and fender storage
• Imtra Accent LED lighting under the seats

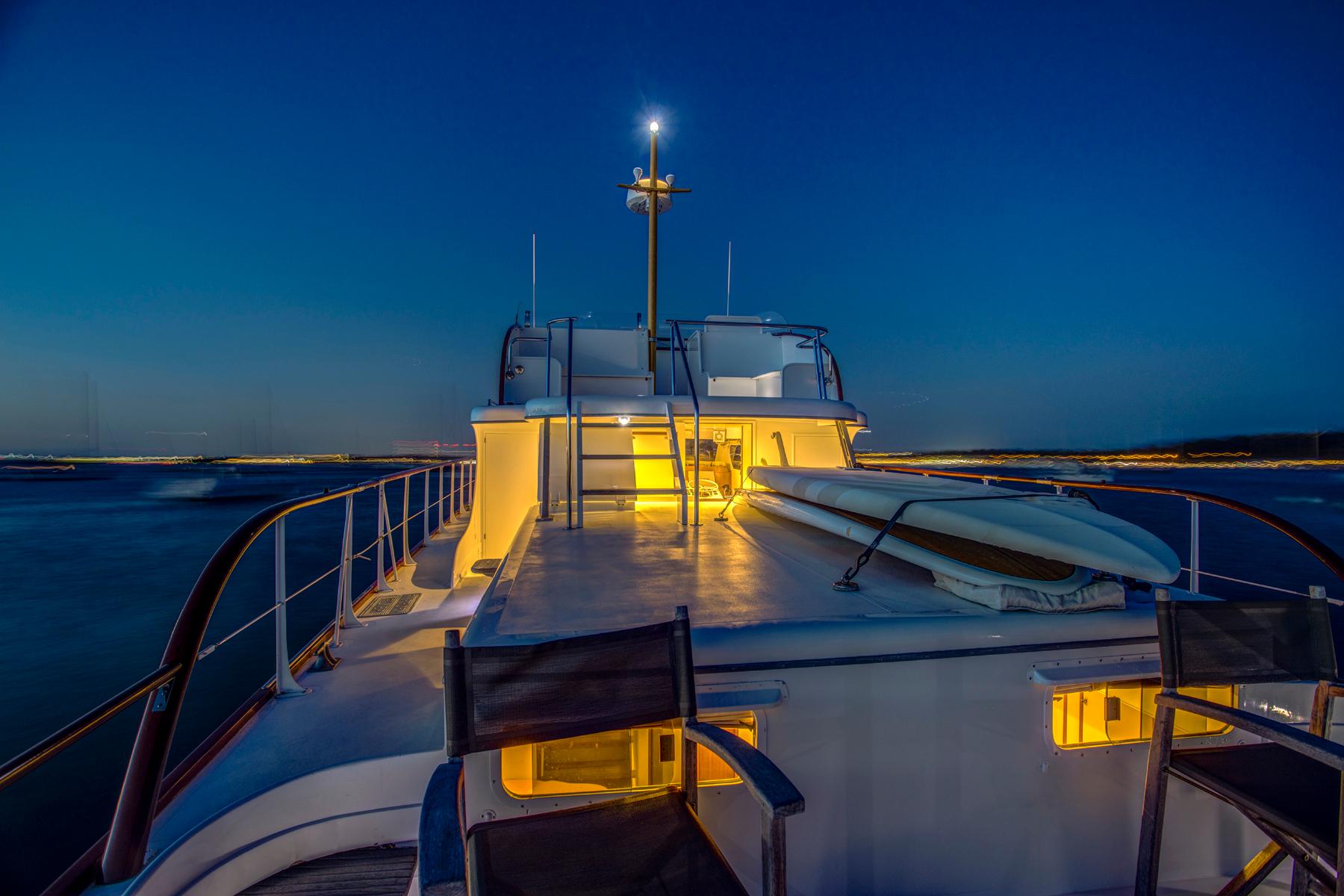

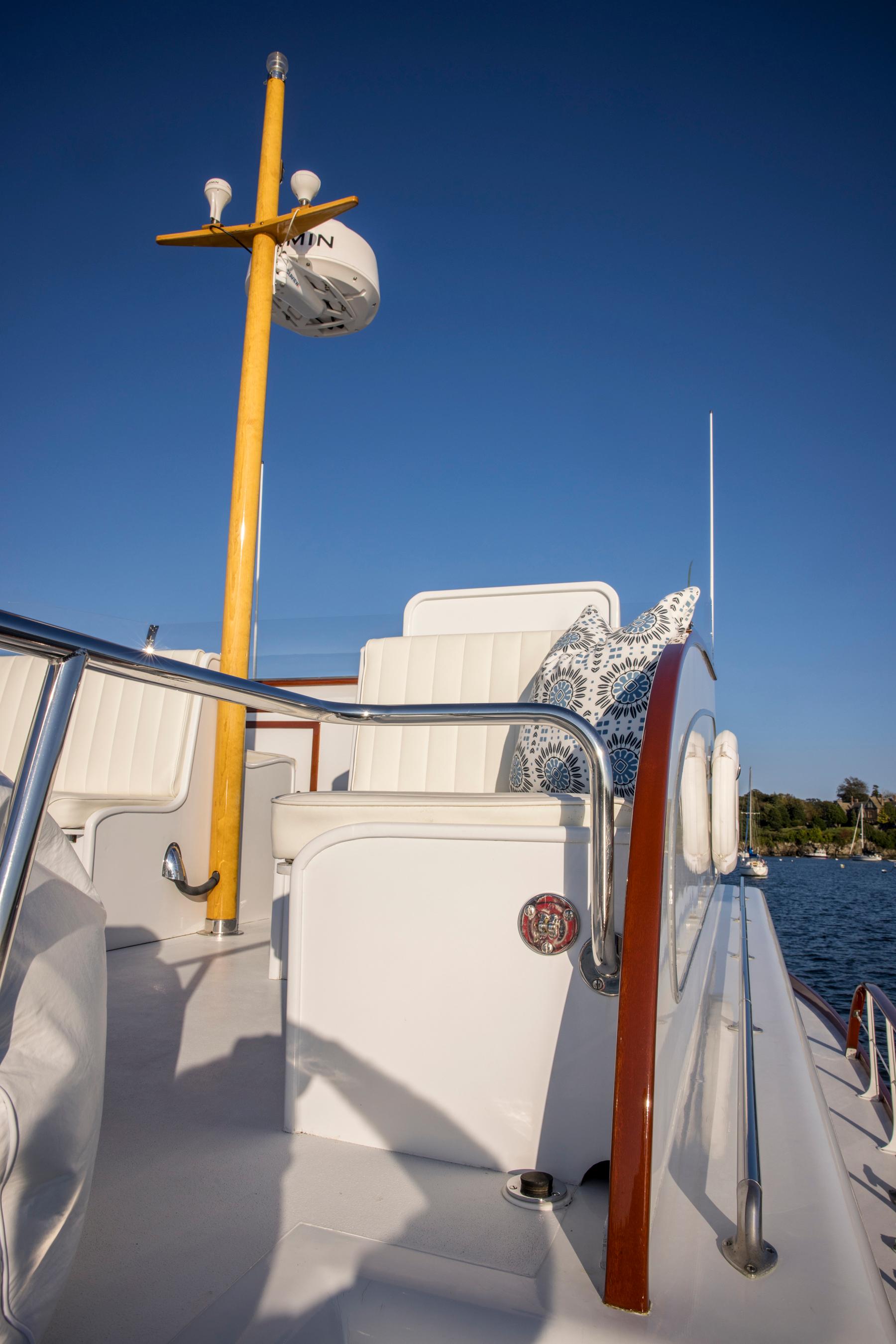

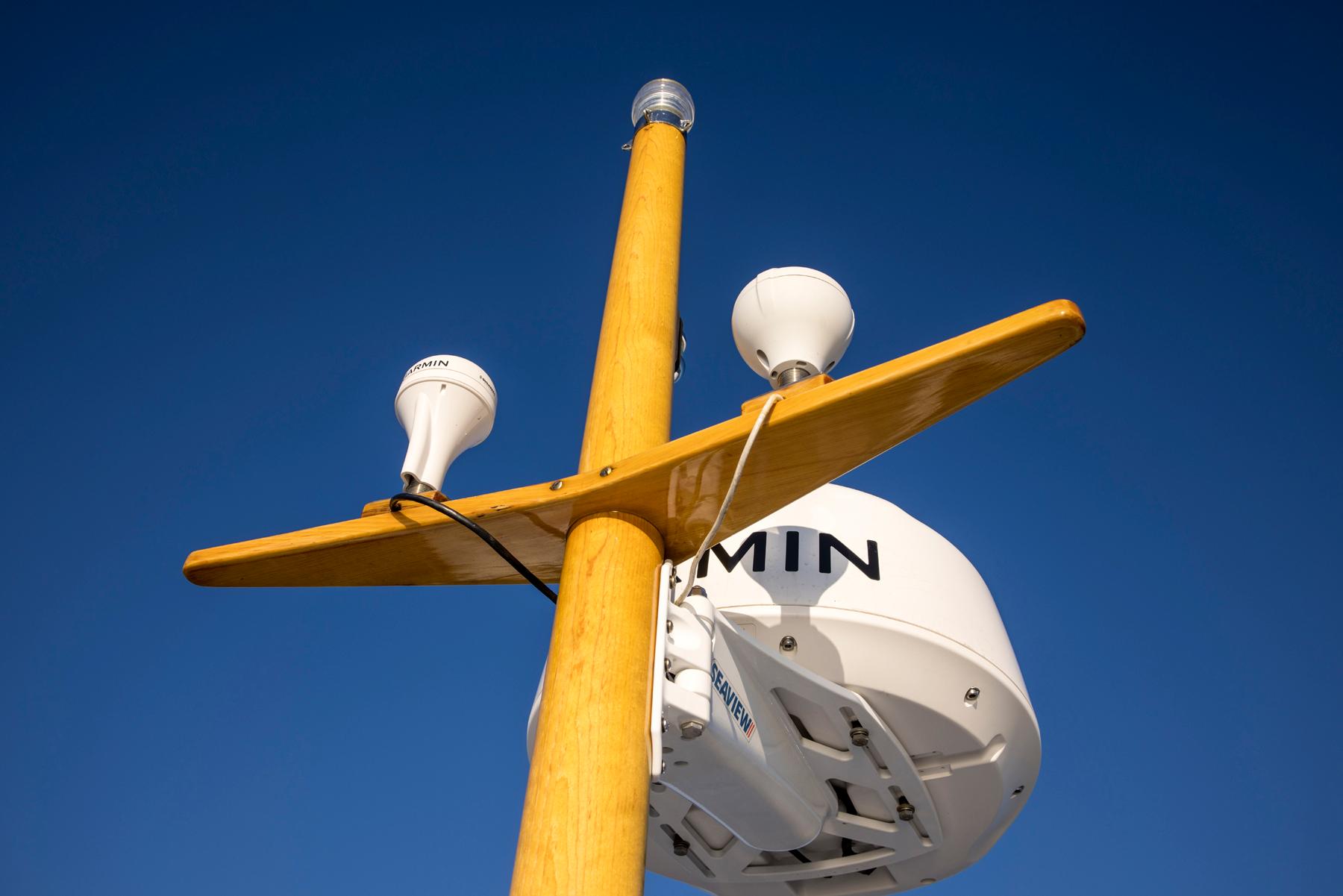

• Sitka Spruce custom mast per original spec, to accommodate electronics and closed array radar as well as steaming and anchor light. Designed for easy removal

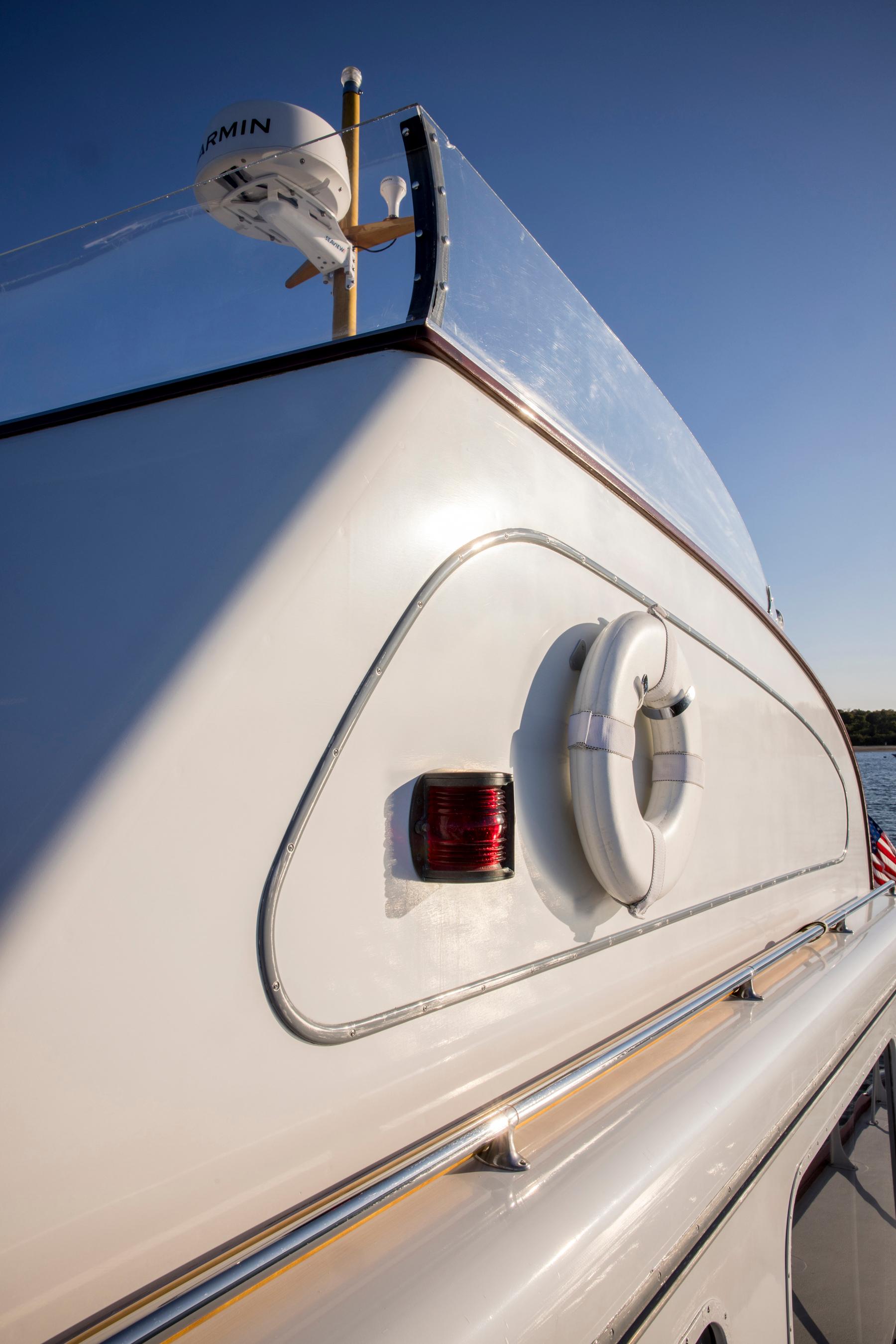

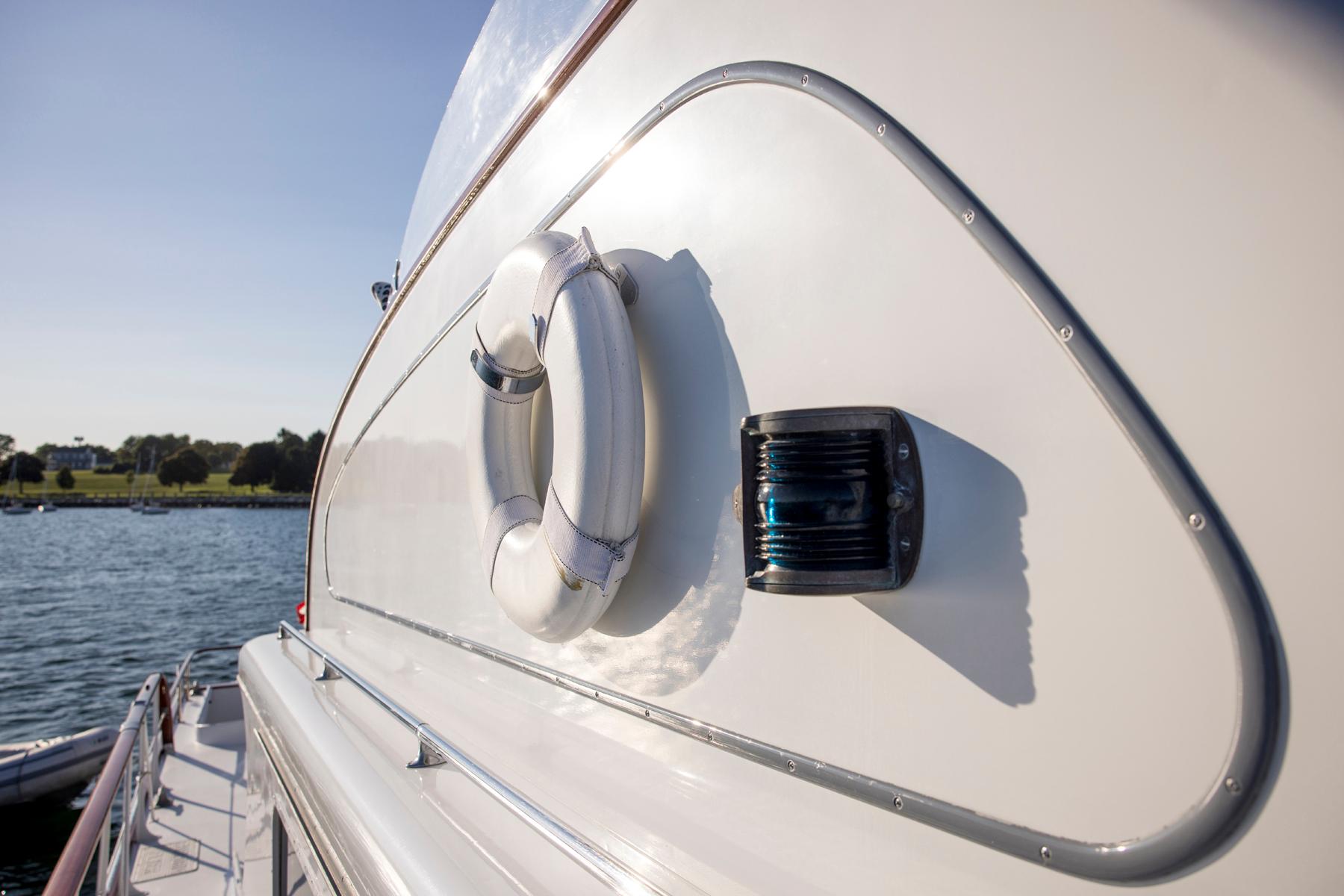

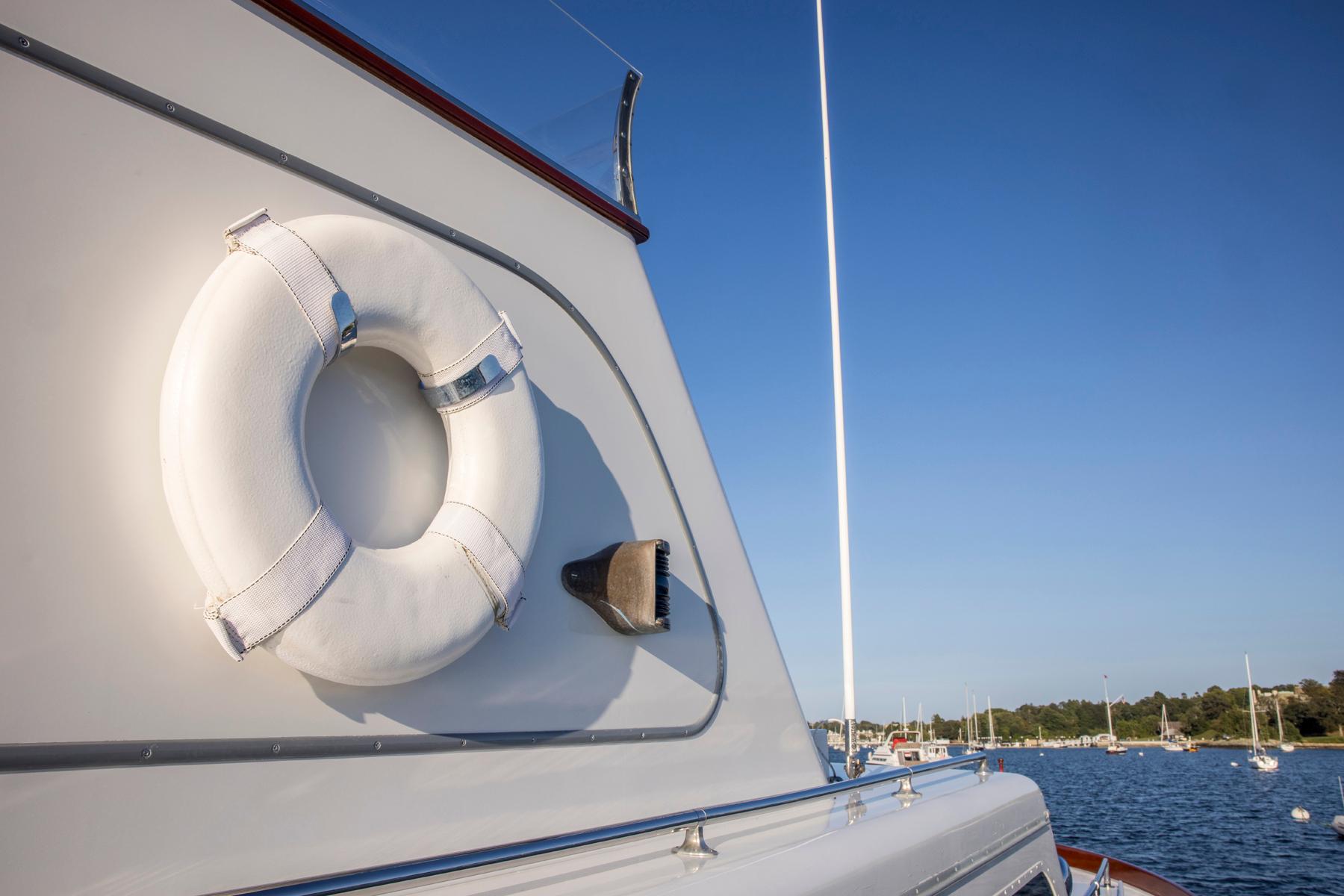

• x2 mounted 20” life rings on the outboard side of the flybridge

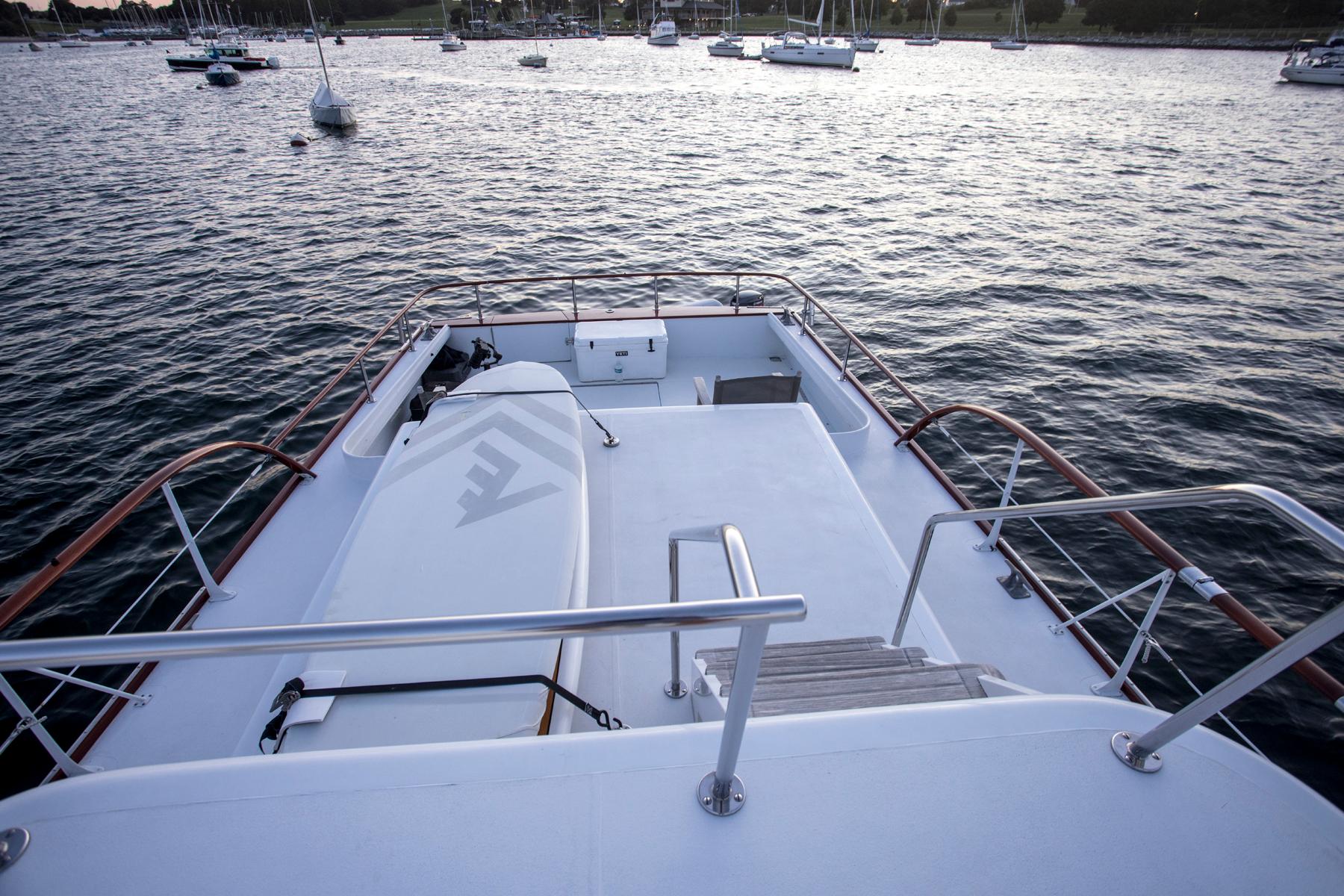

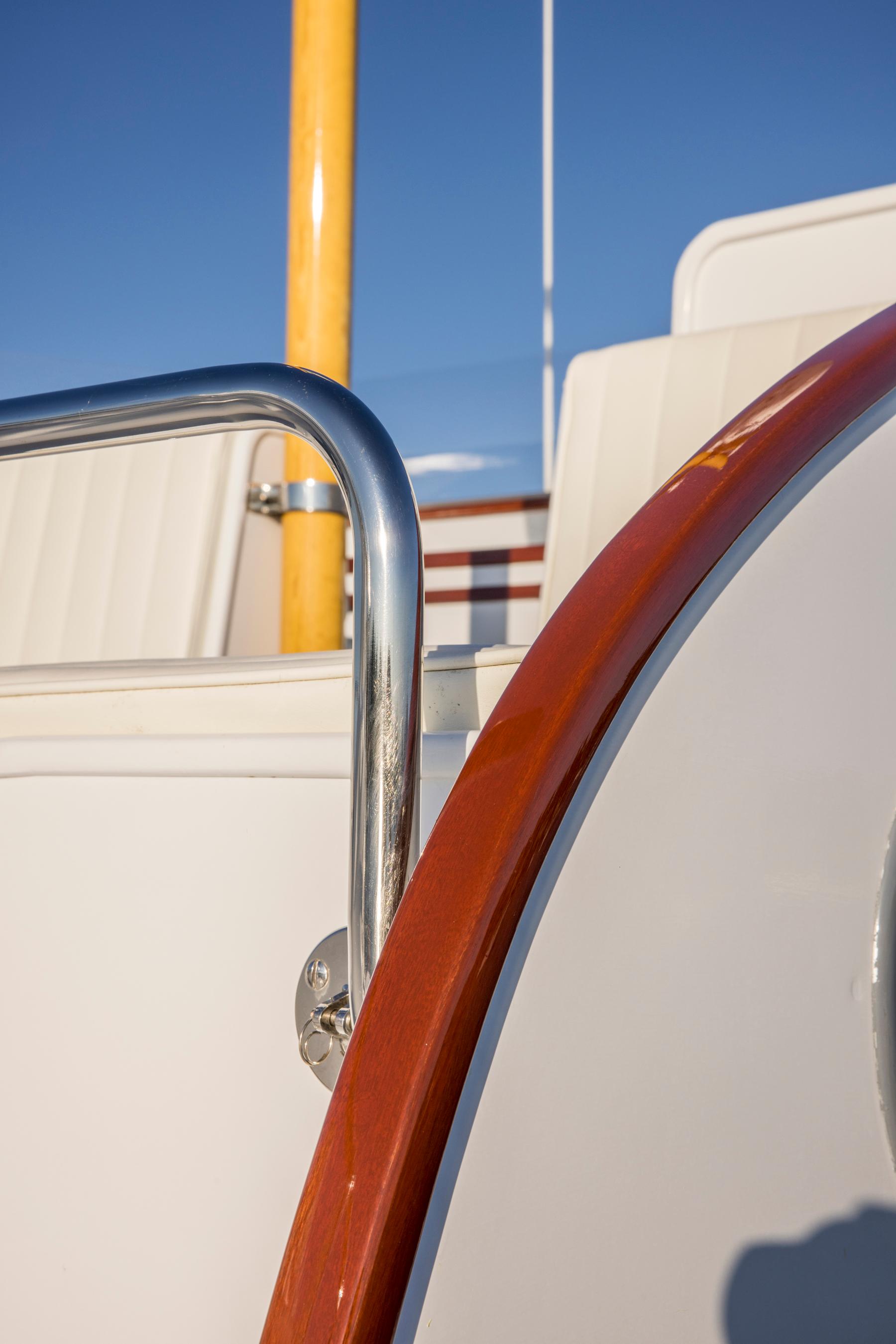

• Custom stainless-steel handrail aft, taken from the original design
• Solid teak steps up to the flybridge

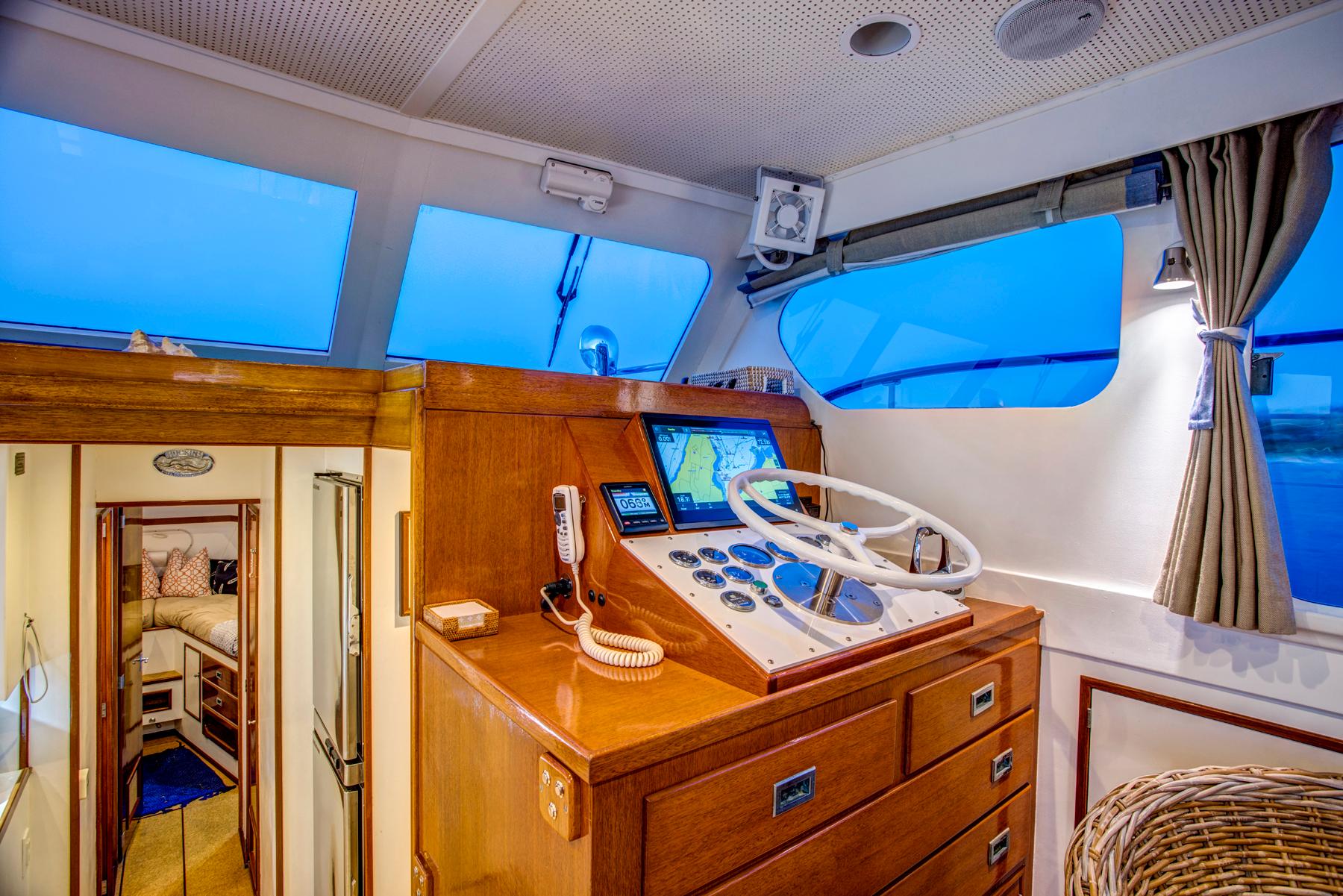

• Mahogany varnished helm console starboard side
• Simple design helm station with excellent instrument visibility
• Cast aluminum painted original steering wheel
• One dual lever Glendenning control module
• Stewart Warner instrument gauges
• AC outlet
• Kahlenberg Horn control
• Garmin 8615 glass bridge display and Garmin autopilot control panel
• Icom Command Mic VHF
• Windows forward clear tempered glass with two wipers

• Glass bridge Garmin touch screen navigation package
• One 8615xv radar / plotter display at lower station, One 8617xv radar / plotter at the upper station
• Garmin GHC 20 Autopilot (Control head at both stations)
• GMR Fantom Radar 18x/24x dome
• Sonar / Depth Garmin
• Garmin AIS black box system
• Icom M502 VHF at flybridge
• Icom Command Mic at lower station

• x2 JBL overhead speakers
• Fusion remote Bluetooth connection

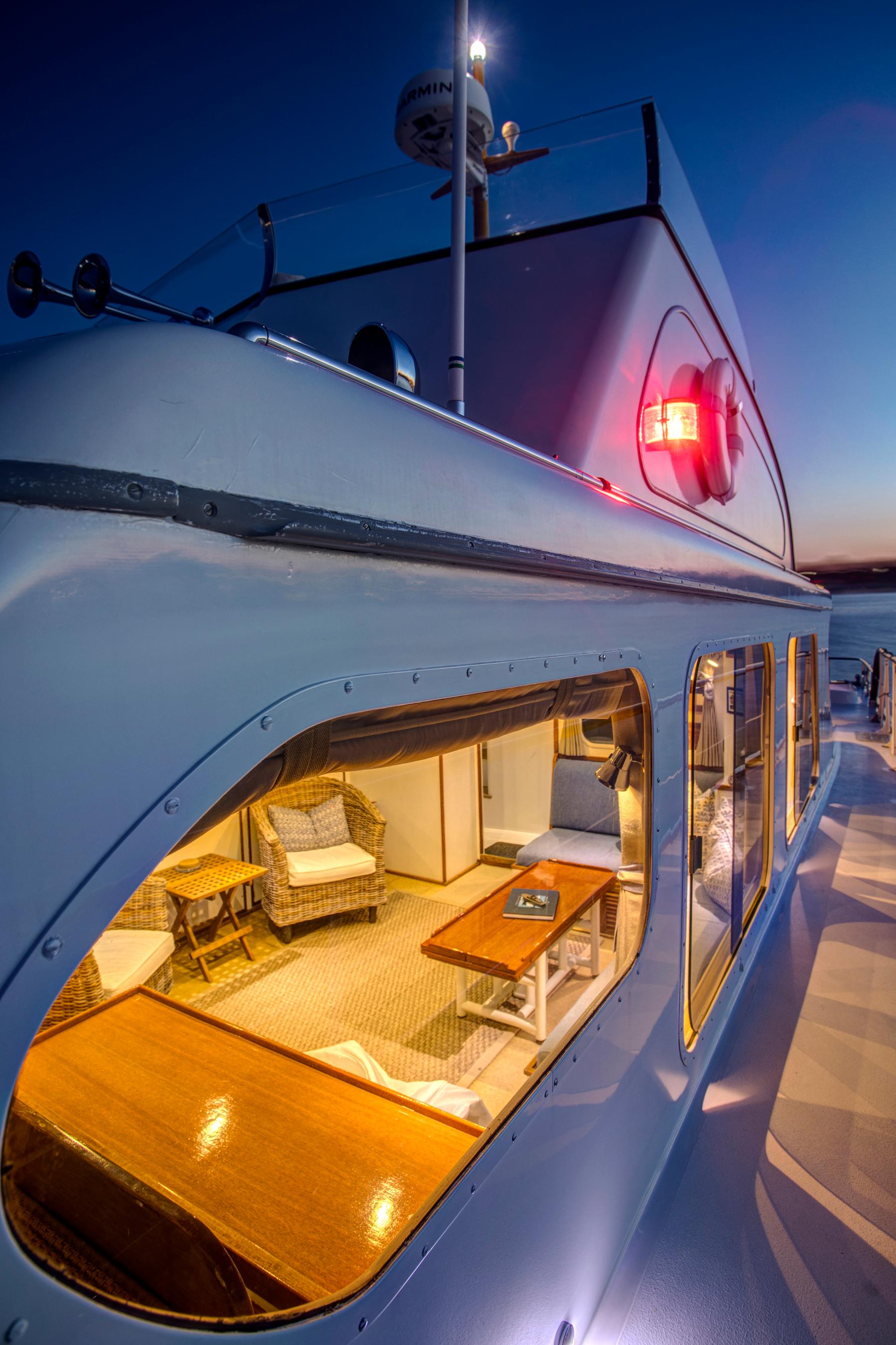

• Opening sliding windows port, starboard and aft
• x6 Imtra LED reading lights

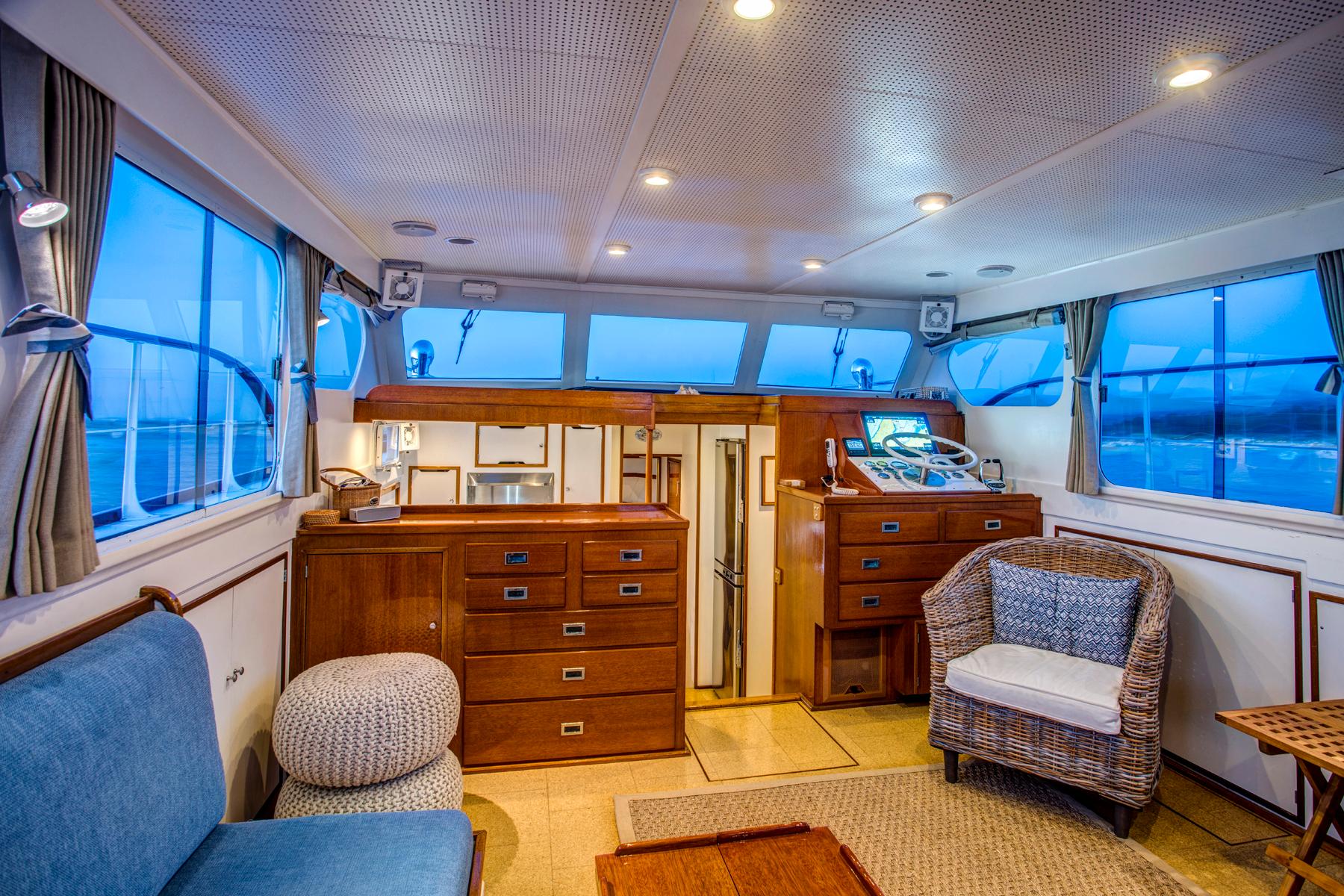

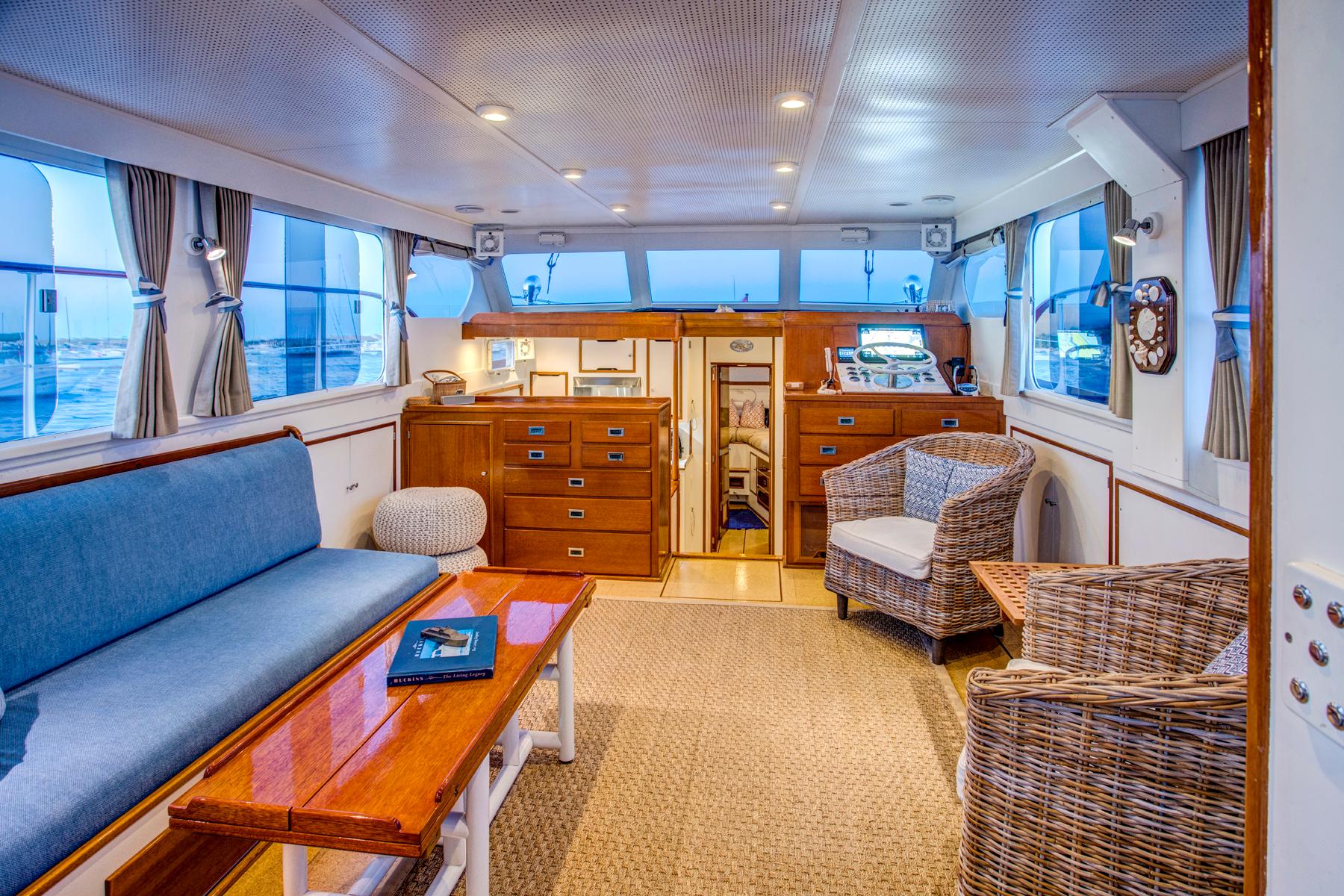

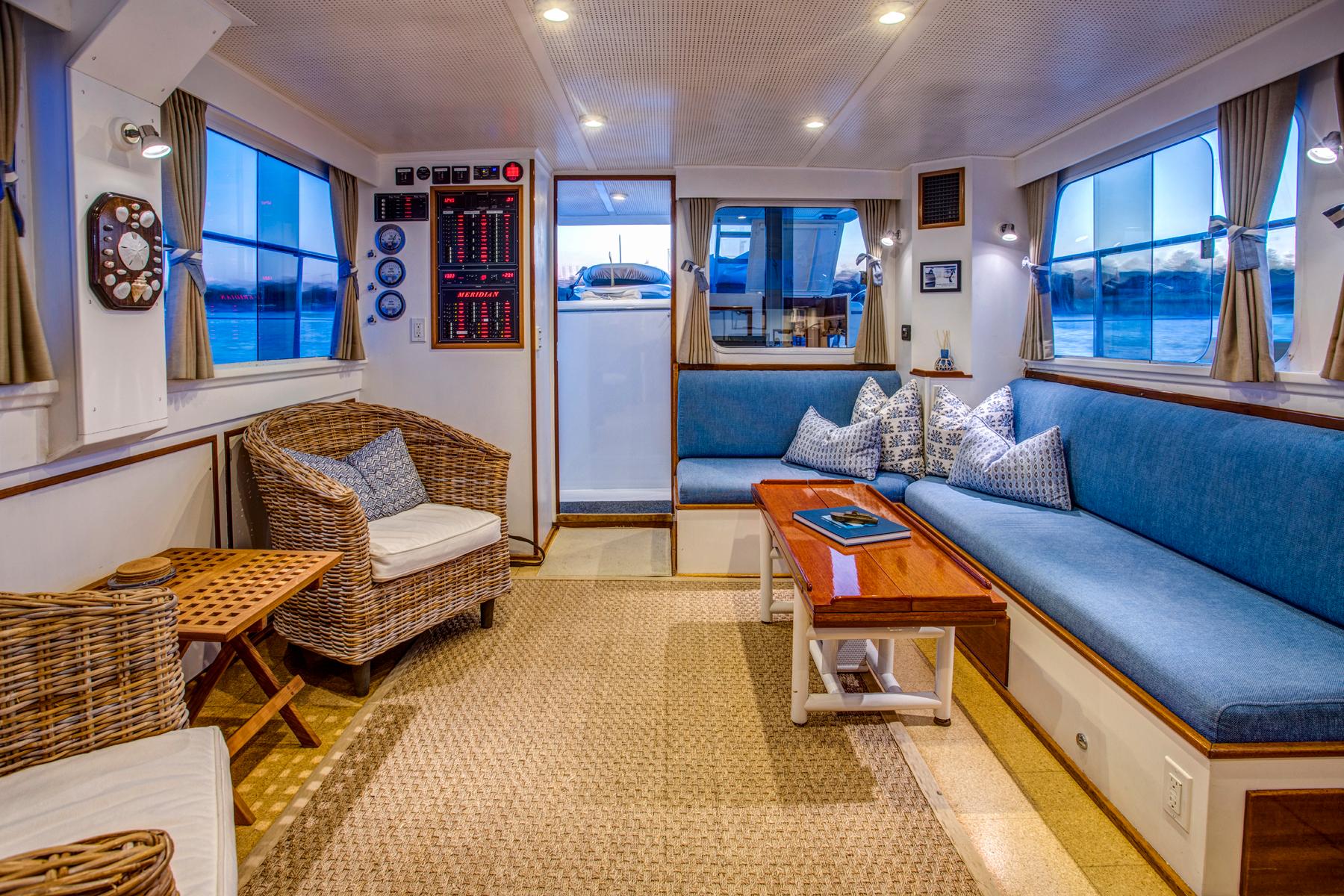

• L-Shaped settee to port with draws below, and storage behind
• Air conditioning unit for salon under the port settee aft
• Original high / low fold out salon table, varnished mahogany
• Port side lower locker, felt lined, custom made for wine storage and liquor.

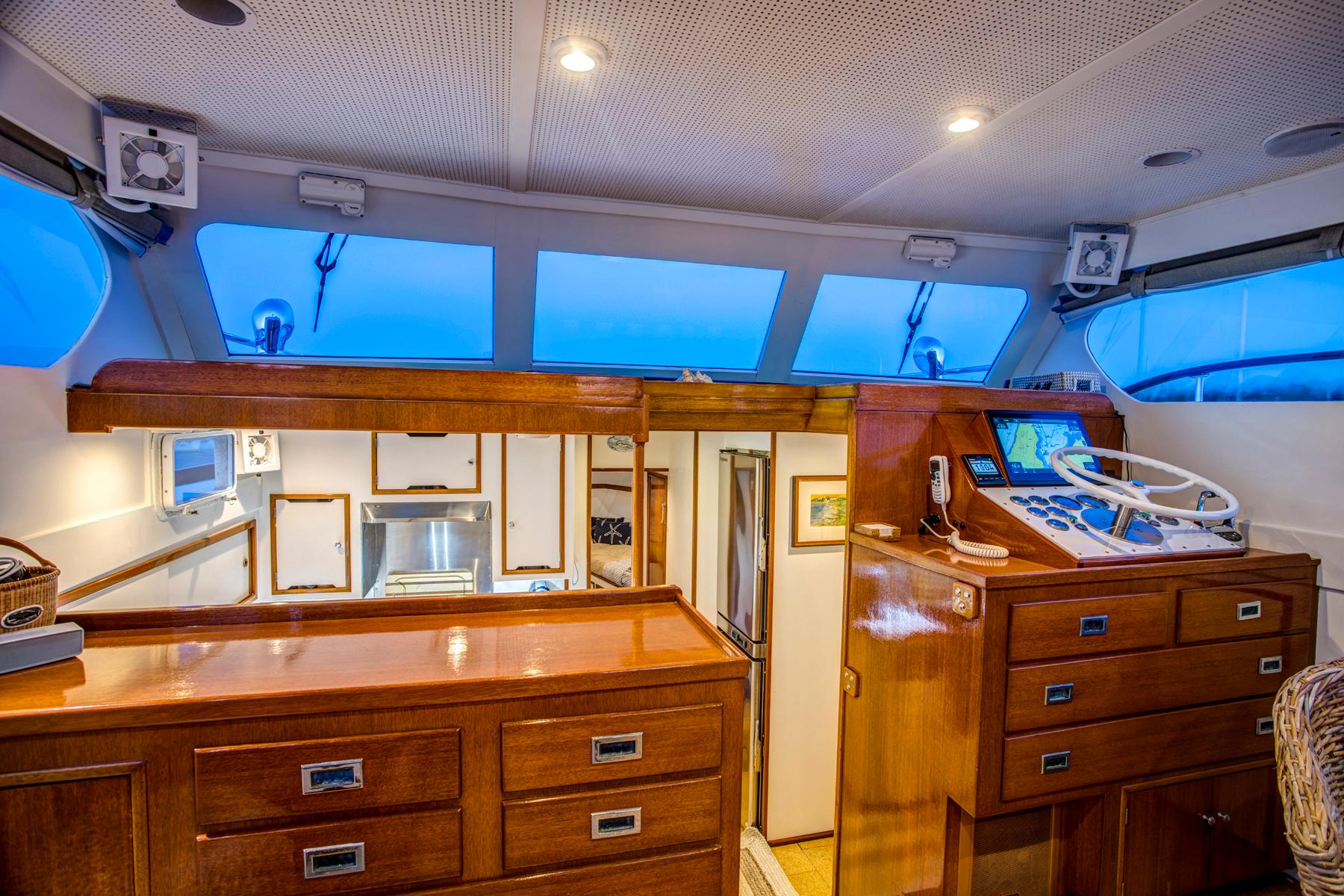

• Varnished Mahogany banquette of draws and lockers forward with considerable storage for glassware, and plates
• x2 wicker comfortable chairs and x2 ottoman
• Small fold out indoor and outdoor teak table
• Starboard side bureau below helm has additional storage and draws
• Starboard side outboard lower lockers for additional storage
• A-Hold storage below the cabin sole (forward) has ample storage for parts, and equipment
• B-Hold storage access inside the salon door below the cabin sole gives access to the equipment room, housing, Head system, hot water heater, freshwater system, batteries, inverter/charger, horn system, spare props, AC strainer
• Below the helm is a 220v ac forced hot air cabin heater
• LED overhead lights dimmable
• x2 original refurbished 12v fans
• Mounted fire extinguisher on the aft salon bulkhead
• Cork flooring with bilge access

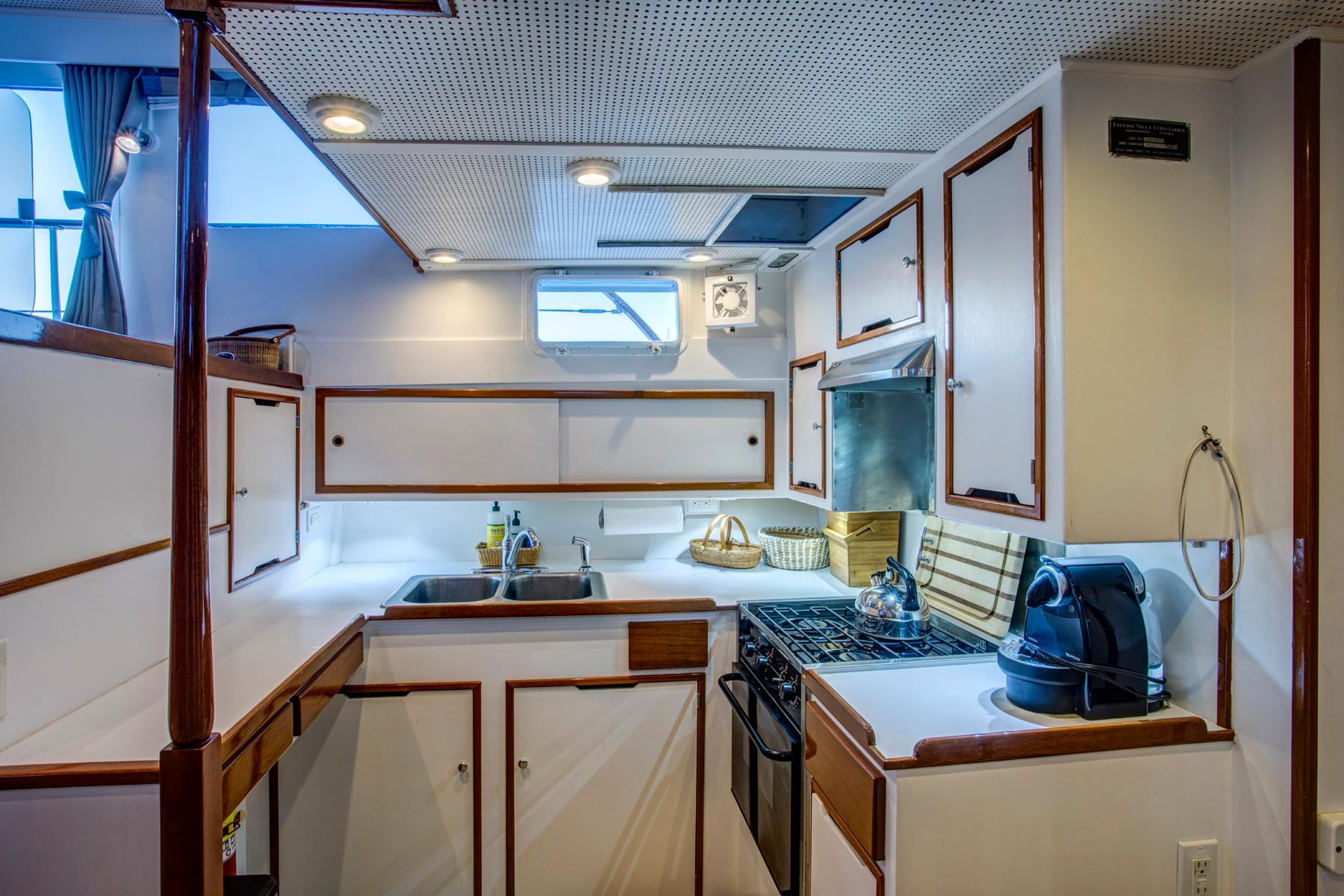

• Chef designed U-Shaped galley, built for extended live aboard cooking
• Formica countertops and deep stainless-steel sinks with varnished mahogany fiddles
• Under counter and over counter storage lockers accessible from both the salon and the galley
• Side ventilation ports and overhead hatches for great ventilation
• Overhead hatch has sliding screen.
• Seward 3-burner propane oven and stove top
• Seward overhead ventilation system with light
• Stainless steel backsplash for the oven
• Microwave oven 110v
• Multiple AC outlets
• Large pantry on the starboard side of the galley with ample storage
• Stainless steel Frigoboat stand up refrigerator and freezer DC 12v air cooled
• Overhead and undercounter Imtra LED lighting
• Cork flooring with bilge access
• Mounted fire extinguisher

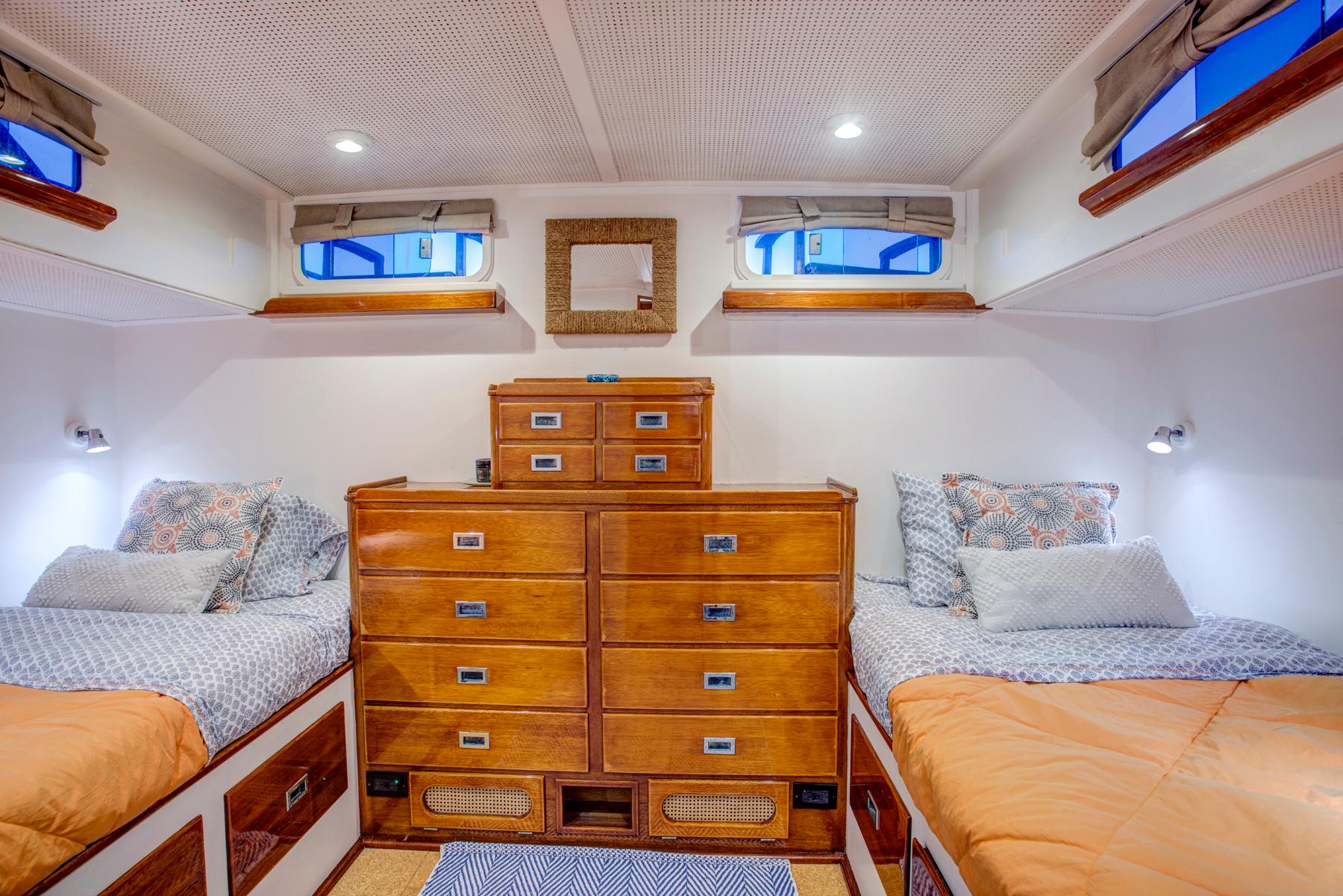

• Two ¾ size bunks port and starboard with large draws under
• Under the bunks are large storage draws and access to the Huckins Vee-drives and coolers
• Bunks separated by a large bureau of varnished mahogany draws
• Outboard of the bunks port and starboard are shallow vertical lockers with shelving
• x6 opening portlights with sliding glass for ventilation
• Large hanging locker with hanging bar and wicker bi-fold door
• Multiple AC outlets
• Mounted fire extinguisher in the hanging locker
• Air conditioning unit for the aft cabin located in the hanging locker forward.
• x2 traditional mahogany Huckins book racks
• Cork flooring with bilge access

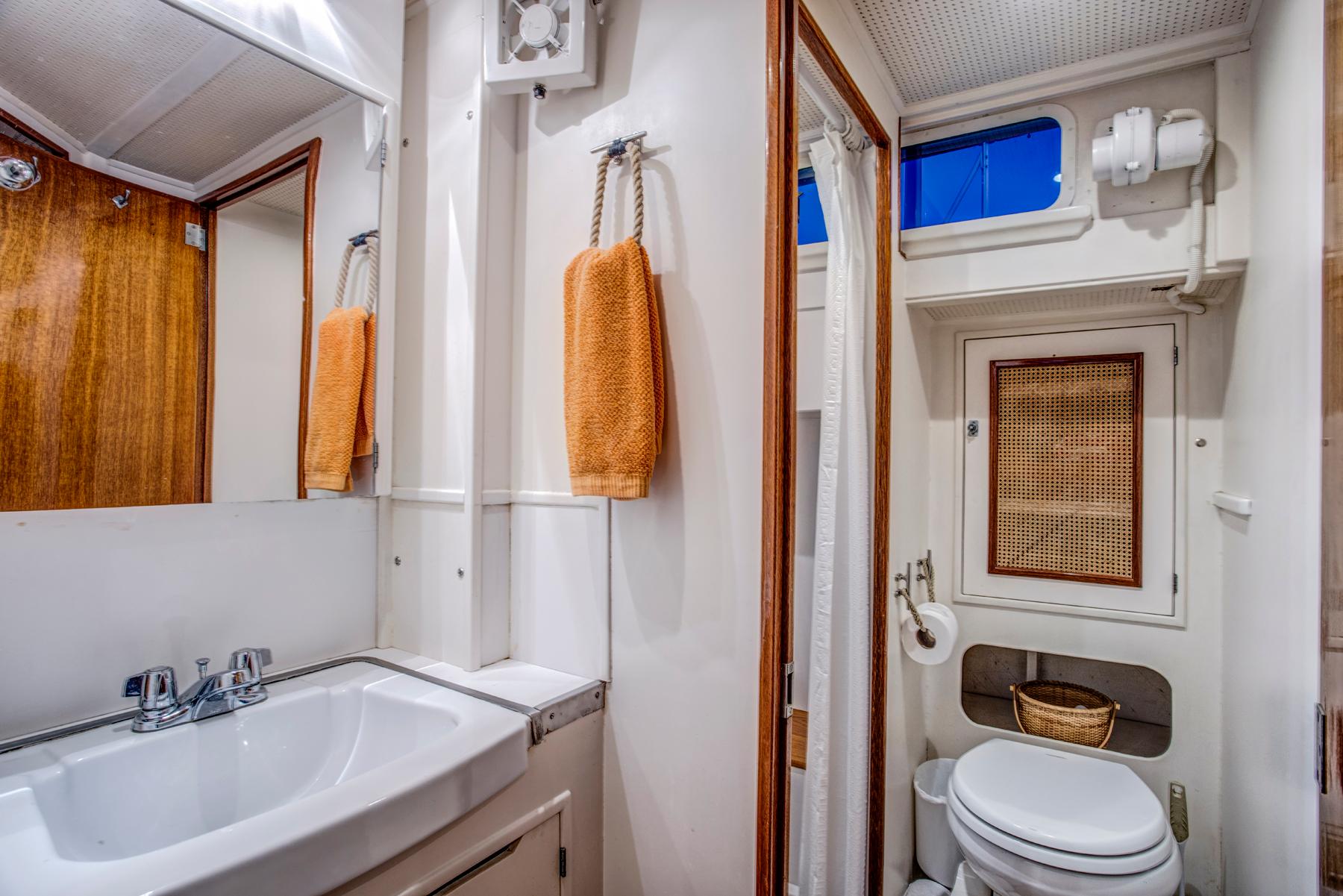

• Private Ensuite head
• Sink, vanity and mirror with storage under
• AC Outlet
• Overhead and above mirror Imtra LED Lighting
• Sealand vacuflush head
• Full stall shower with forced ventilation fan
• Mahogany Shower seat
• Slide opening cabin side port
• Cork flooring with bilge access

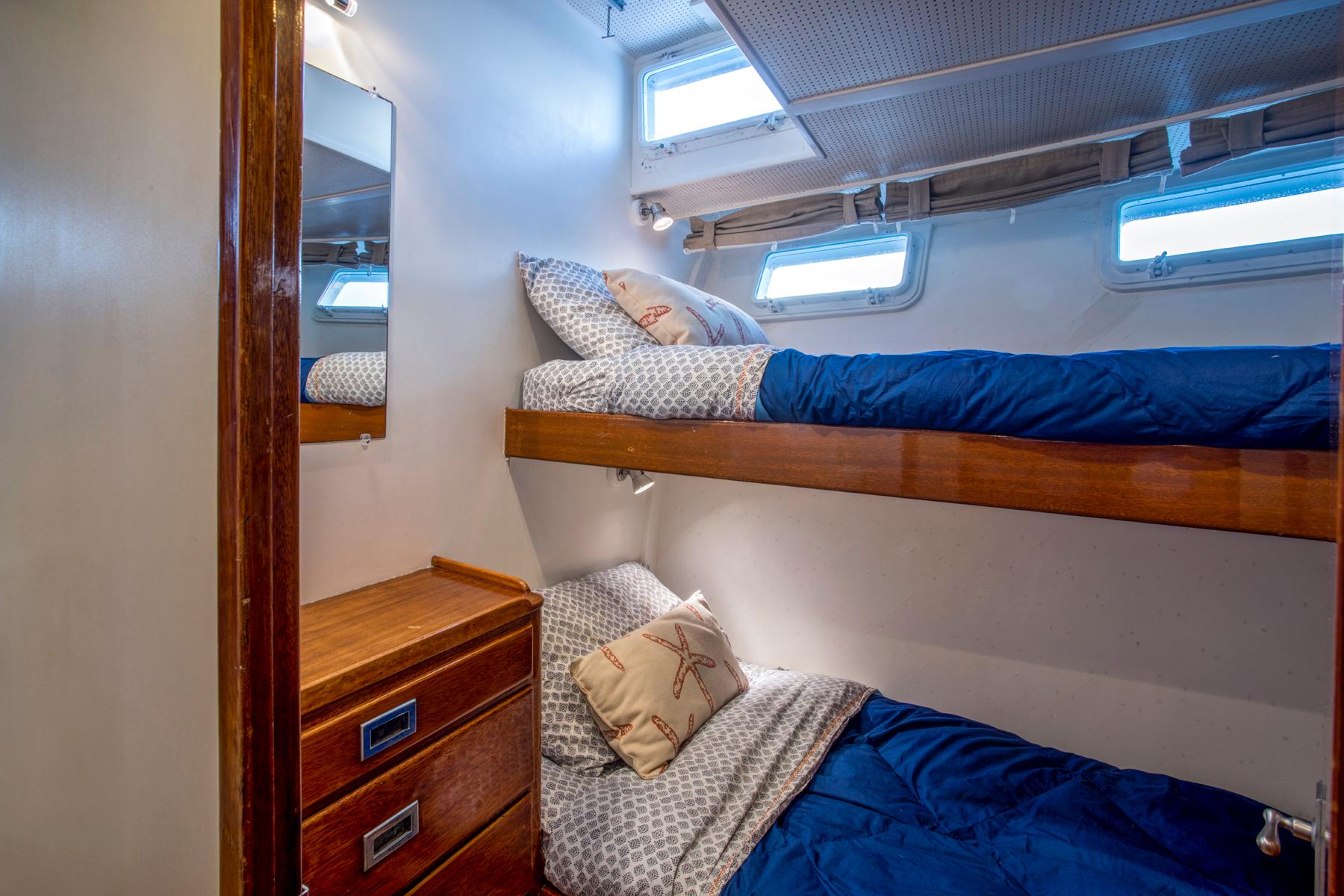

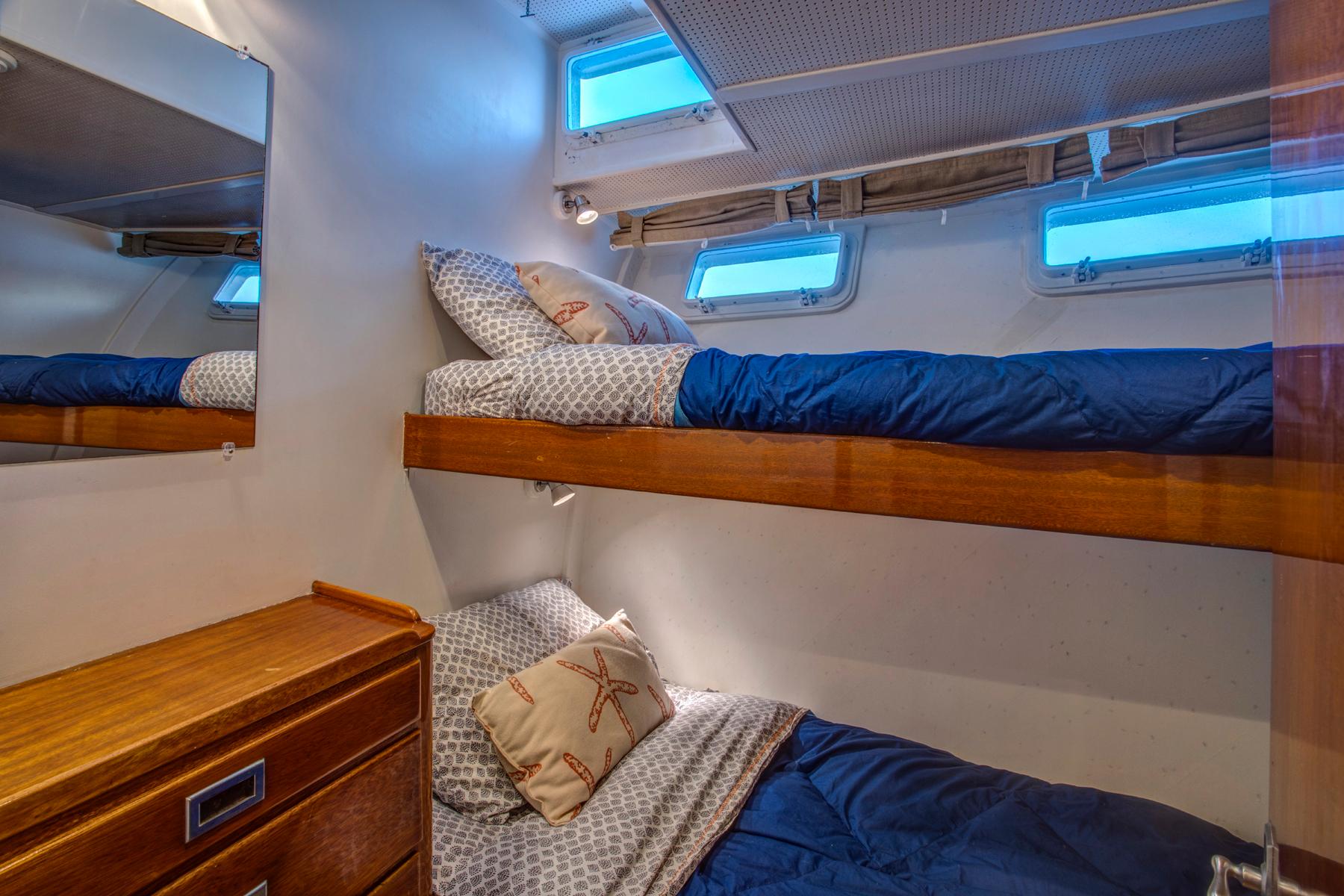

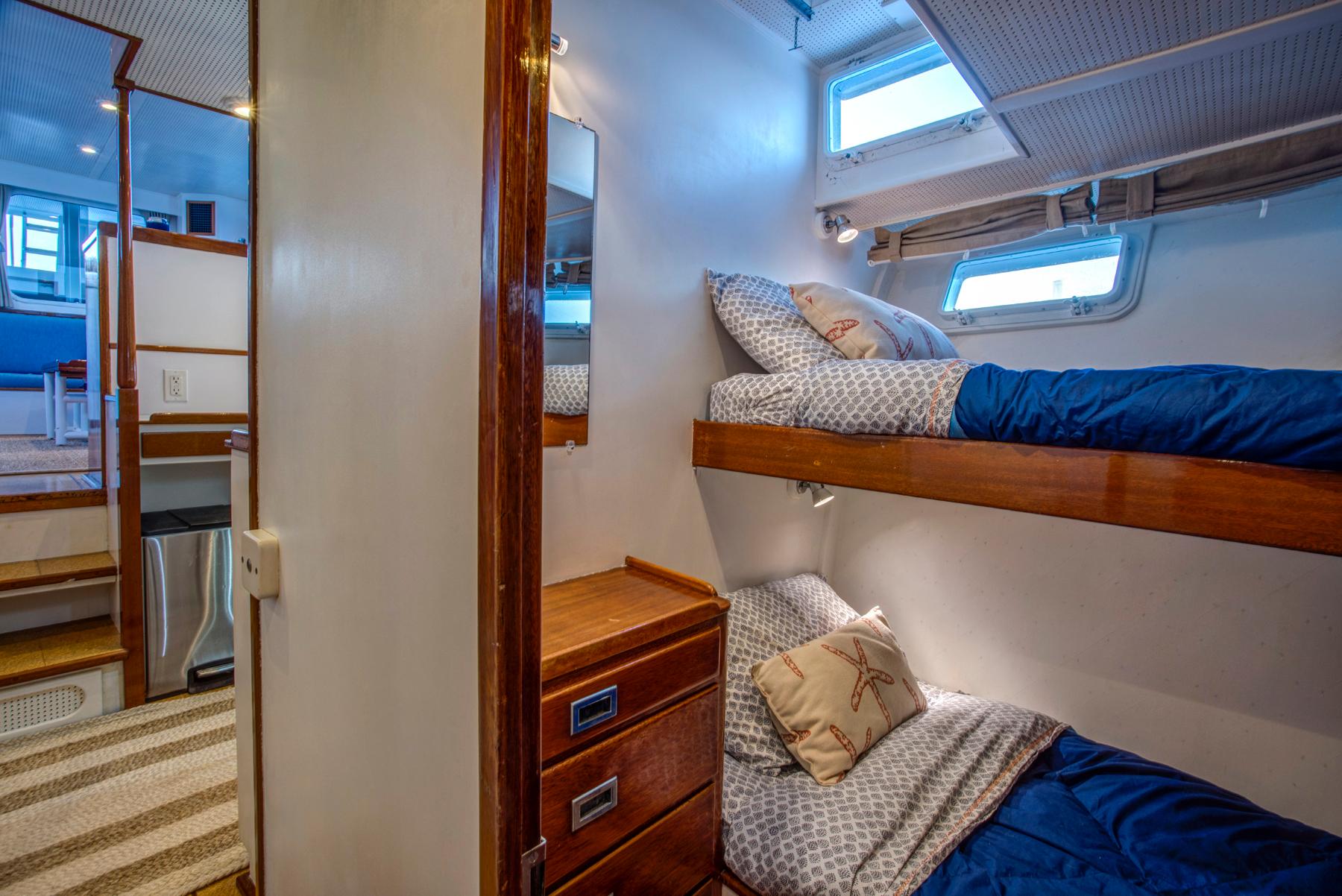

• x2 under over twin bunks with draws under the lower bunk
• Varnished Mahogany door
• x2 outboard opening hull ports
• x1 outboard portlight in the house
• x1 overhead hatch
• Drop down curtains over portlights
• Small, varnished mahogany cabinet with x4 draws, with mirror above
• Overhead LED lighting dimmable
• x2 Imtra LED reading lamps
• AC Outlet
• Tall hanging locker with bar
• Air conditioning unit enclosed at base of hanging locker
• Traditional mounted mahogany Huckins book rack
• Cork flooring

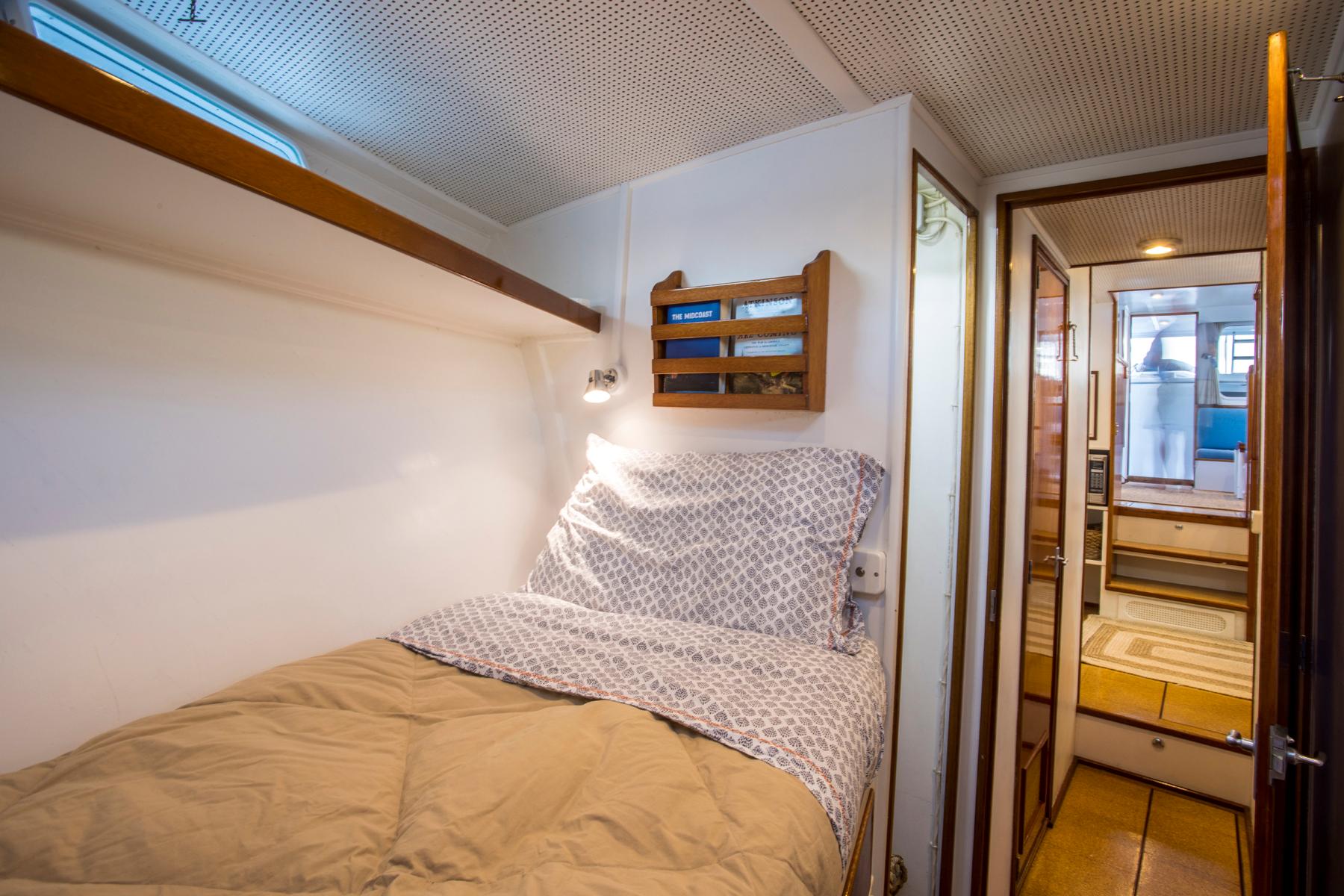

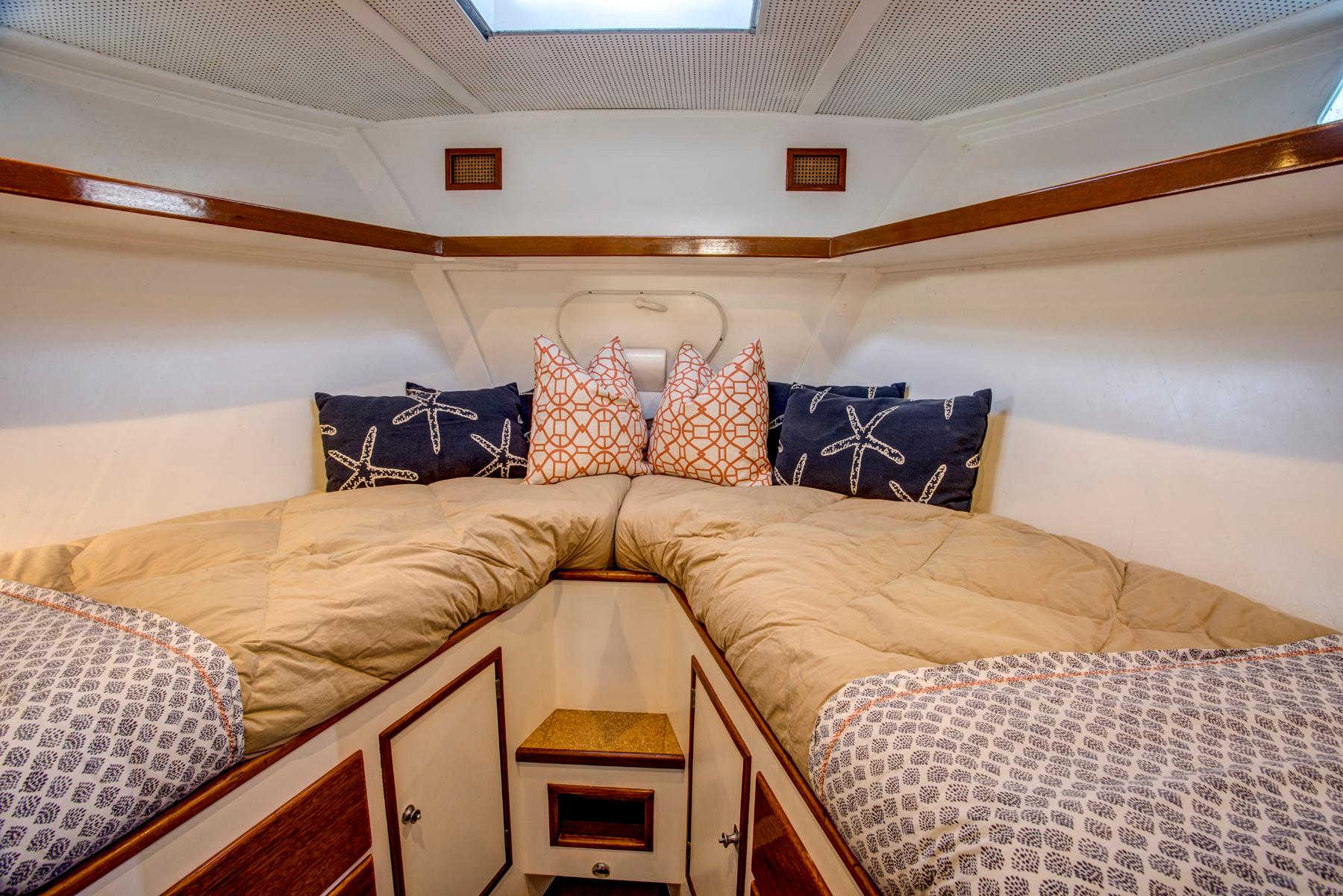

• x2 opposing twin bunks with multiple deep draws and cabinets under
• Shelving port and starboard above bunks and outboard
•  Varnished mahogany door
• x2 outboard opening hull ports
• x1 large overhead forward opening hatch with built in screen slide
• Tall hanging locker with bar and additional storage shelving in the back/outboard
• Forward bulkhead has access hatch to the anchor locker
• Overhead Imtra LED lighting dimmable
• x2 Imtra LED reading lamps
• AC Outlet

• Full sized head and shower on starboard side
• Vanity with mirror above
• Storage lockers outboard and medicine cabinet on forward bulkhead
• Laundry storage hamper built in
• Sealand Vacuflush Head
• Full stall shower with forced ventilation and overhead hatch
• AC Outlet
• Opening cabin side portlight
• Imtra LED mirror lights and overhead lights
• Cork flooring

Owners’ personal belongings. A complete list will be provided upon request.
